Cisco Nexus 2348TQ 10GE Fabric Extender – expansion module – Gigabit Ethernet / 10Gb Ethernet x 48 + 40 Gigabit QSFP+ x 6

Add to Wishlist

Cisco Nexus 2348TQ 10GE Fabric Extender – Expansion module – Gigabit Ethernet / 10Gb Ethernet x 48 + 40 Gigabit QSFP+ x 6

63,899.00 د.إ

Add to Wishlist

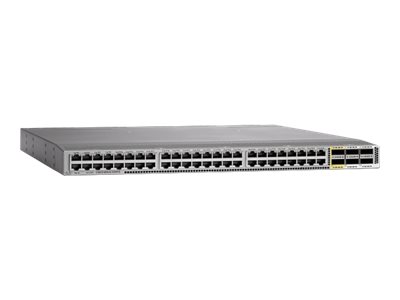

The Cisco Nexus 2348TQ Fabric Extender (FEX) provides 48 10 GT host port interfaces and up to six 40 GE fabric interfaces in a compact 1-rack-unit (1RU) form factor. This platform, with innovative features and enhanced buffers, is ideally suited for migrating to 10GBASE-T in the network access

SKU: N2K-C2348TQ 1 Category: Tag:
General
Device Type Expansion module
Form Factor Rack-mountable
Networking
Ports Gigabit Ethernet / 10Gb Ethernet x 48 + 40 Gigabit QSFP+ x 6
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), 40 Gigabit Ethernet
Performance Forwarding performance (full duplex): 480 Gbps<br> Forwarding performance: 240 Gbps
Capacity Jumbo frame size: 9216<br> ACL entries: 256
Remote Management Protocol SNMP 1, SNMP 2, RMON, SNMP 3, CLI
Status Indicators Port status, power, system
Features Auto-negotiation, VLAN support, Syslog support, WRR queuing, STP support, ACL support, QoS, Jumbo Frames support, DCB, MIB, CoS, tagged VLAN, redundant fans, vPC technology, hot swappable power supply, 3 fans, FCoE support, ISSU
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3an<br> NEBS level 3, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, GB 4943, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR22:2006 Class A, CAN/CSA-C22.2 No. 60950-1, EN 300386
Expansion / Connectivity Interfaces:<br> 48 x 1Gb Ethernet/10Gb Ethernet – RJ-45<br> 6 x 40Gb Ethernet – QSFP+
Power Power Device: Plug-in module<br> Voltage Required: AC 120/230 V (50/60 Hz)
Dimensions & Weight Width: 17.3 in<br> Depth: 17.1 in<br> Height: 1.7 in<br> Weight: 16.98 lbs
Environmental Parameters Min Operating Temperature: 32 °F<br> Max Operating Temperature: 131 °F<br> Humidity Range Operating: 5 – 95% (non-condensing)
