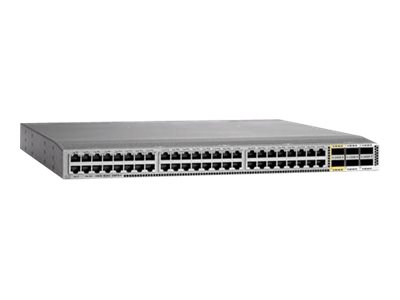

Cisco Nexus 2348TQ-E Fabric Extender – expansion module – Gigabit Ethernet / 10Gb Ethernet x 48 + 40 Gigabit QSFP+ x 6
Cisco Nexus 2348TQ-E Fabric Extender – Expansion module – Gigabit Ethernet / 10Gb Ethernet x 48 + 40 Gigabit QSFP+ x 6 – with 4 x QSFP-Bidi or 2x 40GE Fabric Extender Transceiver and 8x 10GE Fabric Extender Transceiver
AED72,699.00
Simplify your data center access architecture and operations with the Cisco Nexus 2300 platform fabric extenders, the successors to the industry’s widely adopted Cisco Nexus 2000 Series Fabric Extenders. The Cisco Nexus 2300 platform with its Cisco fabric extender architecture provides a highly scalable unified server-access platform across a range of connectivity options such as 100 Megabit Ethernet; 1, 10, and 40 Gigabit Ethernet; unified fabric; copper and fiber connectivity; and rack and blade server environments.
The platform offers excellent support for migration from traditional 1 Gigabit Ethernet to 10 and 40 Gigabit Ethernet and virtual machine – aware unified fabric technologies.
The Cisco Nexus 2300 platform maintains all the existing Cisco Nexus 2000 Series features, including a single point of management, high availability with virtual PortChannels (vPC), vPC+, Enhanced vPC, and LAN and SAN convergence using Fibre Channel over Ethernet (FCoE). With the addition of true 40 Gigabit Ethernet support, deep buffers to handle bursts of traffic common in today’s data center, and unified port capability (on 2348UPQ with 5600 only starting 7.3 release), the Cisco Nexus 2300 platform is suitable for highly virtualized, automated, and cloud environments.
| Device Type | Expansion module |
| Form Factor | Rack-mountable |
| Bundled with | 4 x QSFP-Bidi or 2x 40GE Fabric Extender Transceiver and 8x 10GE Fabric Extender Transceiver |
| Networking |
| Ports | Gigabit Ethernet / 10Gb Ethernet x 48 + 40 Gigabit QSFP+ x 6 |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), 40 Gigabit Ethernet |
| Performance | Forwarding performance (full duplex): 480 Gbps <br> Forwarding performance: 240 Gbps |
| Capacity | Jumbo frame size: 9216 <br> ACL entries: 256 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, CLI |
| Status Indicators | Port status, power, system |
| Features | Auto-negotiation, VLAN support, Syslog support, WRR queuing, STP support, ACL support, QoS, Jumbo Frames support, DCB, MIB, CoS, tagged VLAN, redundant fans, vPC technology, hot swappable power supply, 3 fans, FCoE support, ISSU |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3an |
| Expansion / Connectivity |
| Interfaces | 48 x 1Gb Ethernet/10Gb Ethernet – RJ-45 <br> 6 x 40Gb Ethernet – QSFP+ |
| Miscellaneous |
| Compliant Standards | NEBS level 3, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, GB 4943, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR22:2006 Class A, CAN/CSA-C22.2 No. 60950-1, EN 300386 |
| Power |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | Cisco NX-OS |
| Dimensions & Weight |
| Width | 17.3 in |
| Depth | 17.1 in |
| Height | 1.7 in |
| Weight | 16.98 lbs |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
