The Cisco Nexus 31108TC-V is a 10GBASE-T switch with 48 10GBASE-T ports and 6 QSFP28 ports. This switch is well suited for customers who want to reuse existing copper cabling while migrating from 1-Gbps to 10-Gbps servers. QSFP28 port can operate in native 100-Gbps or 40-Gbps mode or 4 x 10-Gbps mode. The 48 ports support 100MBASE, 1GBASE, and 10GBASE-T, and the 6 QSFP ports support 10, 40, and 100 Gbps.
switch ports

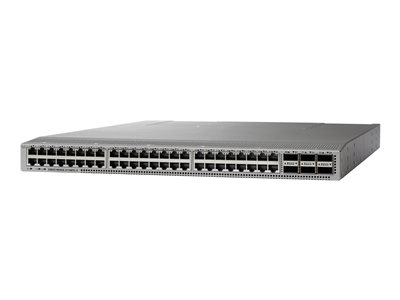

Cisco Nexus 31108TC-V – switch – 48 ports – managed – rack-mountable
Cisco Nexus 31108TC-V – Switch – L3 – managed – 48 x 10 Gigabit Ethernet + 6 x QSFP+ – front to back airflow – rack-mountable – refurbished
62,399.00 د.إ
Device Type | Switch – 48 ports – L3 – managed |
Enclosure Type | Front to back airflow rack-mountable 1U |
Subtype | 10 Gigabit Ethernet |
Ports | 48 x 10 Gigabit Ethernet + 6 x QSFP+ |
Performance | Switching capacity: 2.8 Tbps<br> Forwarding performance: 1.4 Bpps<br> Latency: 650 ns |
Capacity | Virtual interfaces (VLANs): 4096<br> Multiple Spanning Tree Protocol instances: 64<br> Rapid Spanning Tree Protocol instances: 512<br> ACL entries (ingress): 16000<br> ACL entries (egress): 1000 |
MAC Address Table Size | 288K entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | OSPF, RIP-2, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, IGMPv3, MSDP, ECMP, CIDR |
Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
Encryption Algorithm | AES |
Authentication Method | RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
Features | DHCP support, BOOTP support, trunking, VLAN support, Syslog support, RSTP support, MSTP support, DHCP snooping, TFTP support, ACL support, Jumbo Frames support, EIGRP Stub Routing, URPF, UDLD, NTP time synchronization, vPC technology, PTP, VXLAN, EVPN |
Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 1588-2008 |
Flash Memory | 16 GB |
Expansion / Connectivity | Interfaces: 48 x 10GBase-T RJ-45, 1 x 1000Base-T RJ-45 management, 6 x QSFP+, 1 x serial (RS-232), 1 x USB |
Power | Power Device: Internal power supply – hot-plug<br> Power Redundancy: Yes, 1+1<br> Voltage Required: AC 120/230 V (50/60 Hz) |
Miscellaneous | Compliant Standards: CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, EN 300 386 |
Pricing Type | Refurbished |
Software / System Requirements | Software Included: Cisco NX-OS Layer 3 Base Services |
Dimensions & Weight | Width: 17.3 in<br> Depth: 19.9 in<br> Height: 1.7 in<br> Weight: 22.05 lbs |
