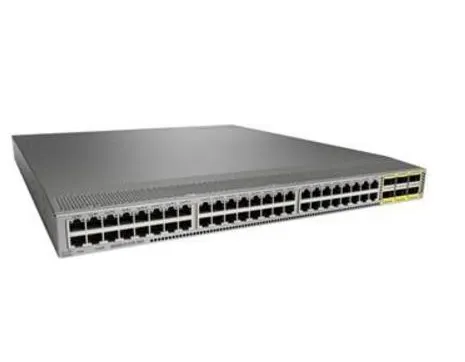

Cisco Nexus 3172TQ Managed L2/L3 10G Ethernet (100/1000/10000) 1U Grey

Add to Wishlist
Nexus 3172TQ, 48 10GBase-T RJ-45, 6 QSFP+ ports

AED127,999.00

Add to Wishlist

Highlights

The Cisco Nexus® 3172PQ, 3172TQ, 3172TQ-32T, 3172PQ-XL, and 3172TQ-XL Switches are dense, high-performance, 10- and 40-Gbps Layer 2 and 3 switches that are members of the Cisco Nexus 3100 switch platform. All switches offer improved port density and scalability in compact one-rack-unit (1RU) form factors. The Cisco Nexus 3172 switches run the industry-leading Cisco® NX-OS Software operating system, which helps ensure continuous availability and sets the standard for mission-critical data center environments. They are well suited for data centers that require cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switches. These switches also support forward and reverse airflow (port-side exhaust and port-side intake) schemes with AC and DC power inputs. The Cisco Nexus 3172TQis a 10GBASE-T switch with 48 10GBASE-T ports and 6 QSFP+ ports. This switch is well suited for customers who want to reuse existing copper cabling while migrating from 1-Gbps to 10-Gbps servers.

Category: Tag:
Feature Specification
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Y
Web-based management Y
ARP inspection Y
Weighted random early detection (WRED) Y
System event log Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
QSFP+ module slots quantity 6
Fiber optic connector QSFP+
Console port RS-232
USB 2.0 ports quantity 1
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3z
10G support Y
Flow control support Y
Broadcast storm control Y
Spanning tree protocol Y
VLAN support Y
Virtual LAN features Private VLAN, Tagged VLAN
Number of VLANs 4096
MAC address table 288000 entries
Switching capacity 1400 Gbit/s
Forwarding rate 1000 Mpps
Jumbo frames support Y
Jumbo frames 9216
Packet buffer memory 12 MB
DHCP features DHCP snooping, DHCP relay
Access Control List (ACL) Y
Access Control List (ACL) egress 1000
Access Control List (ACL) ingress 4000
Security algorithms AES, SNMPv3, SSH-2
SSH/SSL support Y
Root protection Y
Authentication type AAA, RADIUS
Queue scheduling algorithms Weighted Round Robin (WRR), Weighted random early detection (WRED)
Multicast support Y
Routing protocols BGP, OSPF, RIP
Rack mounting Y
Form factor 1U
Product colour Grey
LED indicators Y
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
Internal memory 4000 MB
Flash memory 2000 MB
Noise level 76.7 dB
Redundant power supply (RPS) support Y
Number of power supply units 2
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
DC input voltage 72 V
Power consumption (typical) 360 W
Power consumption (max) 440 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 10 – 85%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3000 m
Heat dissipation 1228 BTU/h
Width 439 mm
Depth 505 mm
Height 44 mm
Weight 10 kg
Product family Nexus
