Cisco Nexus 5548UP Managed L3 10G Ethernet (100/1000/10000) 1U Grey

Add to Wishlist
Switch, Managed, Layer 3, 160 Gbps, 32x SFP+, 32x 10G SFP+, 4x Cisco Nexus 2248TP GE, Fabric Extender, 390W, 35 lb

292,899.00 د.إ

Add to Wishlist

Highlights

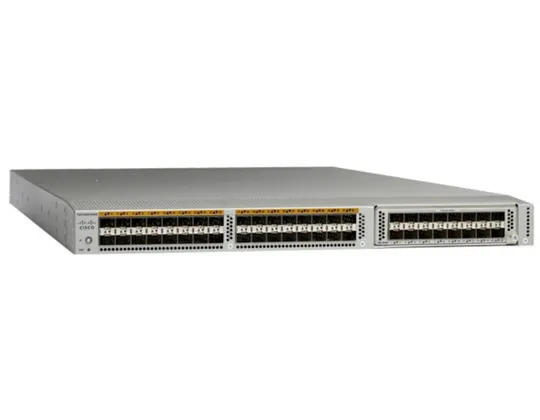

The Cisco Nexus 5548UP (Figure 2) is a 1RU 10 Gigabit Ethernet, Fibre Channel, and FCoE switch offering up to 960 Gbps of throughput and up to 48 ports. The switch has 32 unified ports and one expansion slot. Nexus 5548UP – Switch – Managed – 32 x SFP+ – rack-mountable – with 4x Cisco Nexus 2248TP GE Fabric Extender, 32x 10G SFP+ module (FET-10G)

SKU: N5548UP-4N2248TF Category: Tag:
Feature Specification
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Y
Web-based management Y
System event log Y
MIB support SNMP, UDP, TCP, OSPF, BGP4
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
SFP+ module slots quantity 32
Power connector DC-in jack
Networking standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae
10G support Y
Flow control support Y
Spanning tree protocol Y
VLAN support Y
MAC address table 32 entries
Switching capacity 160 Gbit/s
Throughput 240 Mpps
DHCP features DHCP server, DHCP client
IGMP snooping Y
Multicast support Y
Management protocols SNMP, MIBs, XML, Cisco CLI, IGMP
Rack mounting Y
Form factor 1U
Product colour Grey
LED indicators Y
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power consumption (typical) 390 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3000 m
Heat dissipation 1331 BTU/h
Width 439 mm
Depth 749 mm
Height 44 mm
Weight 15.9 kg
Harmonized System (HS) code 85176990
Product family Nexus
