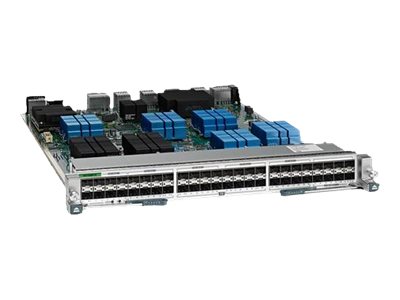

Cisco Nexus 7000 F3-Series 48-Port Fiber 1 and 10G Ethernet Module – expansion module – Gigabit Ethernet / 10 Gigabit SFP+ / SFP (mini-GBIC) x 48


Cisco Nexus 7000 F3-Series 48-Port Fiber 1 and 10G Ethernet Module – Expansion module – Gigabit Ethernet / 10 Gigabit SFP+ / SFP (mini-GBIC) x 48 – for Nexus 7000, 7004, 7010, 7700, 7700 18-Slot

246,499.00 د.إ

Cisco Nexus 7000 Series Switches are the foundation of Cisco Unified Fabric and meet the demands of mission-critical data centers. They deliver exceptional availability, scalability, and the proven, comprehensive feature set of Cisco NX-OS Software. The Cisco Nexus 7000 Series Switches provide integrated resilience and are optimized for availability, reliability, scalability, and ease of management. A single chassis supports up to 768 native 10-Gbps ports, 192 40-Gbps ports, and 96 100-Gbps ports. The Cisco Nexus 7000 F3-Series module is a low-latency, high-performance, high-density 1/10 Gigabit Ethernet module. It supports all Cisco Nexus 7000 Series Switches and shares a common system architecture and application-specific integrated circuit (ASIC) technology.

SKU: N7K-F348XP-25= 1 Category: Tag:
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports Gigabit Ethernet / 10 Gigabit SFP+ / SFP (mini-GBIC) x 48
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Performance Throughput: 480 Gbps; Forwarding performance: 720 Mpps
Capacity Virtual interfaces (VLANs): 4096; Host table entries (IPv6): 32000; Host table entries (IPv4): 64000; ACL entries: 16000; Jumbo frame size: 9216
MAC Address Table Size 64K entries
Remote Management Protocol CLI
Status Indicators Link OK, Unit ID, status
Features MPLS support, IPv6 support, Access Control List (ACL) support, Jumbo Frames support, IPv4 support
Compliant Standards IEEE 802.1ae
Expansion / Connectivity
Interfaces 48 x 10Gb Ethernet – SFP/SFP+
Miscellaneous
Compliant Standards ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, NEBS, CSA C22.2 No. 60950-1, AS/NZS 60950, GR-1089-CORE, VCCI Class A, CNS 13438(95) Class A, GR-63-CORE, KN22 Class A, ETSI 300 019, AS/NZS CISPR22:2006 Class A, EN 55022 Class A, EN 300 386
Dimensions & Weight
Width 15.3 in
Depth 21.9 in
Height 1.7 in
Weight 14.99 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 90% (non-condensing)
Compatibility Information
Designed For Cisco Nexus 7000 Series 10-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 18-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 4-Slot Chassis, 7000 Series 9-Slot Chassis 110Gbps/Slot Fabric Module, 7004 Bundle, 7010, 7010 Bundle, 7700 18-Slot Switch 220 Gbps/Slot Fabric Module, 7700 Switches 10-Slot Chassis
