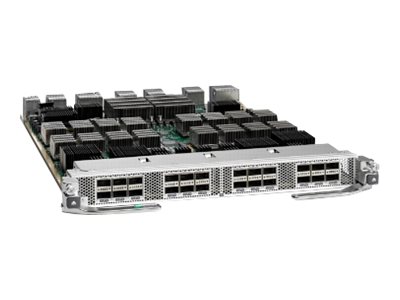

Cisco Nexus 7700 F3-Series 24-Port 40 Gigabit Ethernet Module – expansion module – 40 Gigabit QSFP+ x 24
Cisco Nexus 7700 F3-Series 24-Port 40 Gigabit Ethernet Module – Expansion module – 40 Gigabit QSFP+ x 24 – for Nexus 7700, 7700 18-Slot, 7700 6, 7700 6-Slot, 7706, 7710
AED294,899.00
The Cisco Nexus 7700 F3-Series 24-Port 40 Gigabit Ethernet Module offers outstanding feature flexibility and wire-rate performance on each port. The module enables the deployment of high-density, low-latency, scalable data center architecture.
| General | |
|---|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking | |
| Ports | 40 Gigabit QSFP+ x 24 |
| Connectivity Technology | Wired |
| Data Link Protocol | 40 Gigabit Ethernet |
| Performance | Forwarding performance: 1.44 Bpps |
| Capacity | IPv4 routes: 64000 |
| IPv6 routes: 32000 | |
| Virtual interfaces (VLANs): 4096 | |
| Adjacency entries: 64000 | |
| ACL: 16000 | |
| MAC Address Table Size | 64K entries |
| Remote Management Protocol | CLI |
| Features | Access Control List (ACL) support |
| Quality of Service (QoS) | |
| Jumbo Frames support | |
| Expansion / Connectivity | |
| Interfaces | 24 x 40Gb Ethernet – QSFP+ |
| Miscellaneous | Compliant Standards: NEBS level 3, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR 22, EN 55022 Class A, EN 300 386 |
| Dimensions & Weight | Width: 15.9 in |
| Depth: 21.8 in | |
| Height: 1.7 in | |
| Weight: 16.98 lbs |
| Environmental Parameters | Min Operating Temperature: 32 °F |
| Max Operating Temperature: 104 °F |
| Humidity Range Operating: 5 – 90% (non-condensing) |
| Compatibility Information | Designed For: Cisco Nexus 7700 series |
