Network Adapters

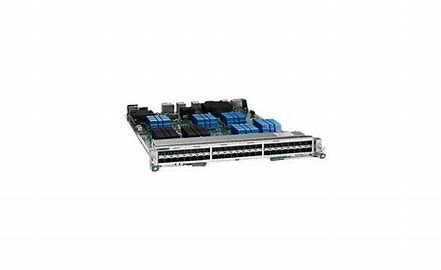

Cisco Nexus 7700 F3-Series 48-Port Fiber 1 and 10G Ethernet Module – expansion module – Gigabit Ethernet / 10Gb Ethernet / FCoE SFP+ x 48
Cisco Nexus 7700 F3-Series 48-Port Fiber 1 and 10G Ethernet Module – Expansion module – Gigabit Ethernet / 10Gb Ethernet / FCoE SFP+ x 48 – for Nexus 7000, 7004, 7009, 7010, 7700, 7700 18-Slot, 7700 6, 7700 6-Slot, 7706, 7710
AED235,899.00
The Cisco Nexus 7700 F3-series 48-port fiber 1 and 10 gigabit Ethernet module offers wire-rate performance on each port. As a result, enterprises can use it to deploy a high-density, low-latency, scalable architecture for powering a mission-critical data center.
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking |
| Ports | Gigabit Ethernet / 10Gb Ethernet / FCoE SFP+ x 48 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) |
| Performance | Forwarding performance: 720 Mpps |
| Capacity | IPv4 routes: 64000 |
| IPv6 routes: 32000 |
| Virtual interfaces (VLANs): 4096 |
| Adjacency entries: 64000 |
| ACL: 16000 |
| MAC Address Table Size | 64K entries |
| Remote Management Protocol | CLI |
| Features | ACL support, QoS, Jumbo Frames support |
| Expansion / Connectivity |
| Interfaces | 48 x 10Gb Ethernet / FCoE – SFP+ |
| Miscellaneous |
| Compliant Standards | NEBS level 3, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR 22, EN 300386 |
| Dimensions & Weight |
| Width | 15.9 in |
| Depth | 21.8 in |
| Height | 1.7 in |
| Weight | 18.52 lbs |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Compatibility Information | Designed For |
| Cisco Nexus 7000 Series 4-Slot Chassis |
| 7000 Series 9-Slot Chassis |
| 7000 Series 9-Slot Chassis 110Gbps/Slot Fabric Module |
| 7004 Bundle |
| 7009 |
| 7010 |
| 7010 Bundle |
| 7700 18-Slot Switch 220 Gbps/Slot Fabric Module |
| 7700 6 Slot Chassis |
| 7700 6-Slot Switch 220 Gbps/Slot Fabric Module |
| 7700 Switches 10-Slot Switch 220 Gbps/Slot Fabric Module |
| 7706 |
| 7710 |
| 7710 Bundle |
