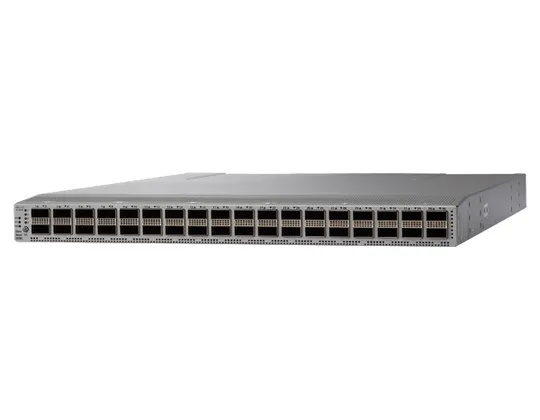

Cisco Nexus 9236C Managed L2/L3 None 1U Grey


Nexus 9200 with 36p 40G 100G QSFP28, 7.2 Tbps, 1 RU

AED181,399.00

Highlights

Built on the latest CiscoĀ®Cloud Scale technology, the Cisco NexusĀ®9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets. The Cisco Nexus 9236C Switch is a 1RU switch that supports 7.2 Tbps of bandwidth and over 5.3 bpps across 36 100-Gbps QSFP28 ports. Each of the ports on the 9236C can be individually configured into 1x100Gbps, 1 x 40 Gbps, 4 x 10/25 Gbps, 2 x 50 Gbps or 1 x 1/10 Gbps using QSA adapter. It provides industry’s best density and flexibility needed for data center spine or aggregation connectivity, in a compact form factor.

Category: Tag:
Feature Specification
Switch type Managed
Switch layer L2/L3
Web-based management Y
Basic switching RJ-45 Ethernet ports type None
QSFP+ module slots quantity 36
Fiber optic connector QSFP28
Console port RJ-45
USB 2.0 ports quantity 1
10G support Y
Spanning tree protocol Y
Multiprotocol Label Switching (MPLS) Y
VLAN support Y
Number of VLANs 3967
Switching optical modules type 100 Gigabit Ethernet
MAC address table 92000 entries
Switching capacity 7200 Gbit/s
Forwarding rate 5300 Mpps
Packet buffer memory 30 MB
Access Control List (ACL) Y
IGMP snooping Y
Multicast support Y
Routing protocols HSRP
Rack mounting Y
Form factor 1U
Product colour Grey
LED indicators Y
Airflow direction Back-to-front airflow, Front-to-back airflow
Number of fans 4 fan(s)
Certification UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
Built-in processor Y
Internal memory 16000 MB
Flash memory 64000 MB
Noise level 69.6 dB
Mean time between failures (MTBF) 399300 h
Redundant power supply (RPS) support Y
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
DC input voltage 72 V
Power consumption (typical) 275 W
Power consumption (max) 640 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 95%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 4000 m
Width 439 mm
Depth 571 mm
Height 44 mm
Product family Nexus
