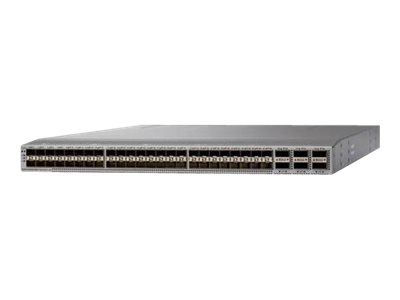

Cisco Nexus 93180YC-EX – switch – 48 ports – rack-mountable (pack of 2 ) AGGE-9318-00-A01

Availability:

10 in stock
Add to Wishlist

د.إ240,999.00

10 in stock

Add to Wishlist

Overview

The 93180YC-EX Switch provides a flexible line-rate Layer 2 and Layer 3 feature set in a compact form factor. Designed with Cisco Cloud Scale technology, it supports highly scalable cloud architectures. With the option to operate in Cisco NX-OS or Application Centric Infrastructure (ACI) mode, it can be deployed across enterprise, service provider, and Web 2.0 data centers.

Architectural flexibility

Includes top-of-rack, fabric extender aggregation, or middle-of-row fiber-based server access connectivity for traditional and leaf-spine architectures. Includes leaf node support for Cisco ACI architecture.

Real-time visibility and telemetry

Cisco Tetration Analytics Platform support with built-in hardware sensors for rich traffic flow telemetry and line-rate data collection. Real-time buffer utilization per port and per queue, for monitor traffic micro-bursts and application traffic patterns.

Highly available and efficient design

High-performance, non-blocking architecture. Easily deployed into either a hot-aisle and cold-aisle configuration. Redundant, hot-swappable power supplies and fan trays.

SKU: AGGE-9318-00-A01 Category: Tags: , ,

Specifications

General
Packaged Quantity 2 (specifications are for single item)
Device Type Switch – 48 ports – L3
Enclosure Type Rack-mountable 1U
Subtype 25 Gigabit Ethernet
Ports 48 x 10/25 Gigabit SFP+ + 6 x 100 Gigabit QSFP28
Performance Bandwidth: 3.6 Tbps Active SPAN sessions: 4
Capacity Multiple Spanning Tree Protocol instances: 64 HSRP groups: 490 Per VLAN Rapid Spanning Tree instances: 4000 Maximum number of links in a port channel: 32 Maximum number of port channels: 512 ECMP paths: 64 Virtual Routing and Forwarding (VRF) instances: 1000 VLANs supported: 4096 ACL entries (egress): 2000 ACL entries (ingress): 4000 IGMP snooping groups: 8000 Multicast routes: 8000
MAC Address Table Size 512K entries
Routing Protocol OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
Features Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer
RAM 16 GB
Built-in Devices 64 GB SSD
Expansion / Connectivity
Interfaces 48 x 1/10/25Gbit LAN SFP+ downlink 6 x 100Gbit LAN QSFP28 uplink 1 x management RJ-45 1 x management SFP+ 1 x USB 1 x serial (RS-232)
Power
Power Device Internal power supply – hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme N+1
Miscellaneous
Rack Mounting Kit Included
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN61000-3-2, EN61000-3-3, EN 55022 Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, KN 61000-4, EN 300386
Software / System Requirements
Software Included Cisco ONE
Dimensions & Weight
Width 17.3 in
Depth 22.5 in
Height 1.7 in
Weight 17.2 lbs
Manufacturer Warranty
Service & Support Limited warranty – advance hardware replacement – 1 year – response time: 10 days
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
General
Built-in Devices 64 GB SSD
Capacity Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦ Per VLAN Rapid Spanning Tree instances: 4000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) instances: 1000 ¦ VLANs supported: 4096 ¦ ACL entries (egress): 2000 ¦ ACL entries (ingress): 4000 ¦ IGMP snooping groups: 8000 ¦ Multicast routes: 8000
Device Type Switch – 48 ports – L3
Enclosure Type Rack-mountable 1U
Features Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer
MAC Address Table Size 512K entries
Packaged Quantity 2 (specifications are for single item)
Performance Bandwidth: 3.6 Tbps ¦ Active SPAN sessions: 4
Ports 48 x 10/25 Gigabit SFP+ + 6 x 100 Gigabit QSFP28
RAM 16 GB
Routing Protocol OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
Subtype 25 Gigabit Ethernet
Dimensions & Weight
Depth 22.5 in
Height 1.7 in
Weight 17.2 lbs
Width 17.3 in
Environmental Parameters
Humidity Range Operating 5 – 95% (non-condensing)
Max Operating Temperature 104 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Interfaces 48 x 1/10/25Gbit LAN SFP+ downlink ¦ 6 x 100Gbit LAN QSFP28 uplink ¦ 1 x management RJ-45 ¦ 1 x management SFP+ ¦ 1 x USB ¦ 1 x serial (RS-232)
Manufacturer Warranty
Service & Support Limited warranty – advance hardware replacement – 1 year – response time: 10 days
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN61000-3-2, EN61000-3-3, EN 55022 Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, KN 61000-4, EN 300386
Rack Mounting Kit Included
Power
Installed Qty 0 (installed) / 2 (max)
Power Device Internal power supply – hot-plug
Power Redundancy Optional
Power Redundancy Scheme N+1
Software / System Requirements
Software Included Cisco ONE
