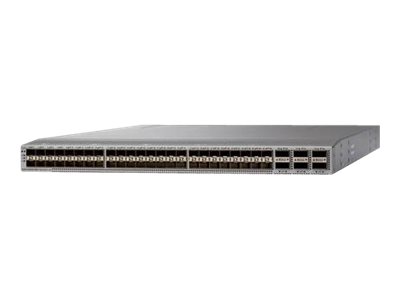

Cisco Nexus 93180YC-EX – switch – 48 ports – rack-mountable – with 8 x Cisco QSFP-40G-SR-BD modules (pack of 2 ) N9K-C93180YCEXB18Q

Availability:

10 in stock
Add to Wishlist

AED169,099.00

10 in stock

Add to Wishlist

Cisco Systems 2 Nexus 93180YC-Ex with 8 QSFP-40G-SR-BD



Overview

The Cisco Nexus 93180YC-EX is a 1-rack-unit (1RU) switch that supports 3.6 terabits per second (Tbps) of bandwidth and over 2.8 billion packets per second (bpps). The 48 downlink ports on the 93180YC-EX can be configured to work as 1-, 10-, or 25- Gbps ports, offering deployment flexibility and investment protection. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 10-, 25-, 40-, 50-, and 100-Gbps connectivity, offering flexible migration options.



The Cisco Nexus 93180YC-EX is a 1-rack-unit (1RU) switch that supports 3.6 terabits per second (Tbps) of bandwidth and over 2.8 billion packets per second (bpps). The 48 downlink ports on the 93180YC-EX can be configured to work as 1-, 10-, or 25- Gbps ports, offering deployment flexibility and investment protection. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 10-, 25-, 40-, 50-, and 100-Gbps connectivity, offering flexible migration options.

Number of Ports:48

SKU: N9K-C93180YCEXB18Q Category: Tags: , ,

Specifications

General
Packaged Quantity 2 (specifications are for single item)
Device Type Switch – 48 ports – L3 – with 8 x Cisco QSFP-40G-SR-BD modules
Enclosure Type Rack-mountable 1U
Subtype 25 Gigabit Ethernet
Ports 48 x 1/10/25 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP+
Performance Bandwidth: 3.6 Tbps Active SPAN sessions: 4
Capacity Multiple Spanning Tree Protocol instances: 64 HSRP groups: 490 Per VLAN Rapid Spanning Tree instances: 4000 Maximum number of links in a port channel: 32 Maximum number of port channels: 512 ECMP paths: 64 Virtual Routing and Forwarding (VRF) instances: 1000 VLANs supported: 4096 ACL entries (egress): 2000 ACL entries (ingress): 4000 IGMP snooping groups: 8000 Multicast routes: 8000
MAC Address Table Size 512K entries
Routing Protocol OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
Features Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer
RAM 16 GB
Built-in Devices 64 GB SSD
Expansion / Connectivity
Interfaces 48 x 1/10/25Gbit LAN SFP+ downlink 6 x 100Gbit/40Gbit LAN QSFP28 uplink 1 x management RJ-45 1 x management SFP+ 1 x USB 1 x serial (RS-232)
Power
Power Device Internal power supply – hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme N+1
Miscellaneous
Included Accessories 2 x accessory kits
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN61000-3-2, EN61000-3-3, EN 55022 Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, KN 61000-4, EN 300386
Software / System Requirements
Software Included Cisco NX-OS
Dimensions & Weight
Width 17.3 in
Depth 22.5 in
Height 1.7 in
Weight 17.2 lbs
Manufacturer Warranty
Service & Support Limited warranty – advance hardware replacement – 1 year – response time: 10 days
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
General
Built-in Devices 64 GB SSD
Capacity Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦ Per VLAN Rapid Spanning Tree instances: 4000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) instances: 1000 ¦ VLANs supported: 4096 ¦ ACL entries (egress): 2000 ¦ ACL entries (ingress): 4000 ¦ IGMP snooping groups: 8000 ¦ Multicast routes: 8000
Device Type Switch – 48 ports – L3 – with 8 x Cisco QSFP-40G-SR-BD modules
Enclosure Type Rack-mountable 1U
Features Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer
MAC Address Table Size 512K entries
Packaged Quantity 2 (specifications are for single item)
Performance Bandwidth: 3.6 Tbps ¦ Active SPAN sessions: 4
Ports 48 x 1/10/25 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP+
RAM 16 GB
Routing Protocol OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
Subtype 25 Gigabit Ethernet
Dimensions & Weight
Depth 22.5 in
Height 1.7 in
Weight 17.2 lbs
Width 17.3 in
Environmental Parameters
Humidity Range Operating 5 – 95% (non-condensing)
Max Operating Temperature 104 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Interfaces 48 x 1/10/25Gbit LAN SFP+ downlink ¦ 6 x 100Gbit/40Gbit LAN QSFP28 uplink ¦ 1 x management RJ-45 ¦ 1 x management SFP+ ¦ 1 x USB ¦ 1 x serial (RS-232)
Manufacturer Warranty
Service & Support Limited warranty – advance hardware replacement – 1 year – response time: 10 days
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 300386, EN61000-3-2, EN61000-3-3, EN 55022 Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, KN 61000-4
Included Accessories 2 x accessory kits
Power
Installed Qty 0 (installed) / 2 (max)
Power Device Internal power supply – hot-plug
Power Redundancy Optional
Power Redundancy Scheme N+1
Software / System Requirements
Software Included Cisco NX-OS
