Network Adapters

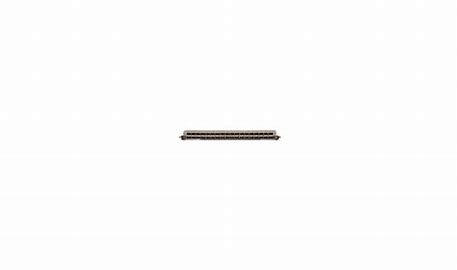

Cisco Nexus 9500 R-Series Line Card – expansion module – 10Gb Ethernet x 16 + 10Gb Ethernet/25Gb Ethernet x 32 + 100 Gigabit Ethernet x 4
Cisco Nexus 9500 R-Series Line Card – Expansion module – 10Gb Ethernet x 16 + 10Gb Ethernet/25Gb Ethernet x 32 + 100 Gigabit Ethernet x 4 – for P/N: C1-N9K-C9508, N9K-C9504-FM-R
165,999.00 د.إ
| General |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking |
| Ports | 10Gb Ethernet x 16 + 10Gb Ethernet/25Gb Ethernet x 32 + 100 Gigabit Ethernet x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | 1.2 Tbps |
| Capacity |
| IPv4 routes | 750,000 |
| Multicast routes | 250,000 |
| Virtual interfaces (VLANs) | 4,096 |
| Maximum links in a port channel | 32 |
| Equal-Cost Multipathing (ECMP) ways | 256 |
| Maximum port channels | 1,000 |
| SPAN sessions | 32 |
| MAC Address Table Size | 750,000 entries |
| Features |
| Features | MACsec support, 4GB packet buffer |
| Processor / Memory |
| Processor Clock Speed | 2.4 GHz |
| RAM | 8 GB |
| Expansion / Connectivity |
| Interfaces | 16 x 10Gb Ethernet – QSFP ¦ 36 x 10Gb Ethernet/25Gb Ethernet – QSFP ¦ 4 x 100Gb Ethernet – QSFP |
| Miscellaneous |
| MTBF | 100,000 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN 61000-4, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
| Power Consumption Operational | 300 Watt |
| Dimensions & Weight |
| Weight | 0.2 oz |
| Compatibility Information |
| Designed For | P/N: C1-N9K-C9508, N9K-C9504-FM-R |
