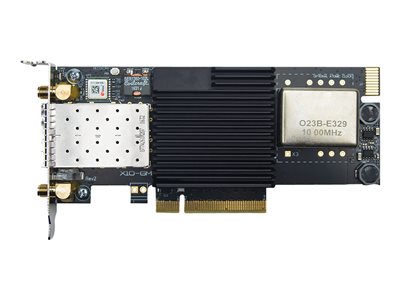

Cisco Nexus NIC GM – expansion module – PCIe 3.0 x8 – Gigabit SFP+ x 2


Cisco Nexus NIC GM – Expansion module – PCIe 3.0 x8 low profile – Gigabit SFP+ x 2 – for UCS C220 M5L, C240 M5, C240 M5L, SmartPlay Select C220 M5, SmartPlay Select C240 M5L

21,899.00 د.إ

Category Specification
General
Device Type Expansion module
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 3.0 x8
PCI Specification Revision PCIe 3.0
Networking
Ports Gigabit SFP+ x 2
Connectivity Technology Wired
Cabling Type Ethernet 1000Base-SX, Ethernet 10GBase-LR, Ethernet 10GBase-SR
Data Link Protocol Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Performance Timestamp resolution: 4 ns
Capacity Unicast slaves: 128
Network / Transport Protocol TCP/IP, UDP/IP, IPv4
Features Precision Time Protocol (PTP), Oven-Controlled Quartz Oscillator (OCXO), multicast mode, unicast mode, Telecom profile, built-in GNSS receiver
Expansion / Connectivity
Interfaces 2 x 10GBase-X – SFP+ ¦ 1 x antenna – SMA ¦ 1 x PPS input/output timing port – SMA
Miscellaneous
Compliant Standards IEEE 1588v2
Dimensions & Weight
Depth 5.9 in
Height 2.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 – 90% (non-condensing)
Compatibility Information
Designed For Cisco UCS C220 M5 LFF, C220 M5 Server (Large Form Factor Disk Drive Model), C220 M5L, C220 M5SN SFF, C240 M5 Advanced, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server, C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C240 M5L, C240 M5L Rack Server for Microsoft Azure Stack, SmartPlay Select C220 M5, SmartPlay Select C220 M5 High Core 1, SmartPlay Select C220 M5 Standard 1, SmartPlay Select C220 M5 Standard 2, SmartPlay Select C220 M5S Basic 1 (Tracer), SmartPlay Select C220 M5S Standard 1 (Tracer), SmartPlay Select C220 M5SX, SmartPlay Select C220 M5SX (Tracer), SmartPlay Select C220 M5SX Advanced 1 (Tracer), SmartPlay Select C220 M5SX Advanced 2, SmartPlay Select C220 M5SX Advanced 2 (Tracer), SmartPlay Select C220 M5SX Advanced 3, SmartPlay Select C220 M5SX Advanced 4, SmartPlay Select C220 M5SX Advanced 5, SmartPlay Select C220 M5SX Basic 1, SmartPlay Select C220 M5SX Basic 2, SmartPlay Select C220 M5SX Basic 3, SmartPlay Select C220 M5SX Basic 4, SmartPlay Select C220 M5SX Expansion Pack 2, SmartPlay Select C220 M5SX High Core 2, SmartPlay Select C220 M5SX Standard 2, SmartPlay Select C220 M5SX Standard 2 (Tracer), SmartPlay Select C220 M5SX Standard 3, SmartPlay Select C220 M5SX Standard 4, SmartPlay Select C240 M5 Standard 1, SmartPlay Select C240 M5L, SmartPlay Select C240 M5L High Frequency 1, SmartPlay Select C240 M5L High Frequency 2, SmartPlay Select C240 M5L Standard 1, SmartPlay Select C240 M5L Standard 2, SmartPlay Select C240 M5L Standard 3, SmartPlay Select C240 M5L Standard 4, SmartPlay Select C240 M5SX, SmartPlay Select C240 M5SX (Tracer), SmartPlay Select C240 M5SX Advanced 1, SmartPlay Select C240 M5SX High Frequency 2, SmartPlay Select C240 M5SX Standard 2, SmartPlay Select C240 M5SX Standard 3, SmartPlay Select C240 M5SX Standard 4, SmartPlay Select C240 M5SX Standard 5, SmartPlay Select C240 M5SX Standard 6
