Cisco Nexus SmartNIC+ V9P – expansion module – PCIe 3.0 x16 – QSFP-DD x 2

Add to Wishlist

Cisco Nexus SmartNIC+ V9P – Expansion module – PCIe 3.0 x16 low profile – QSFP-DD x 2

53,399.00 د.إ

Add to Wishlist

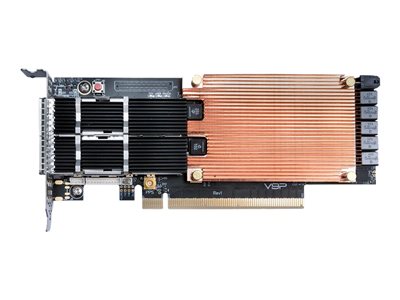

The Cisco Nexus SmartNIC+ V9P is an FPGA-based network application card, optimized for low latency and high density. The device packs a powerful 16nm Xilinx Virtex UltraScale Plus (VU9P) FPGAs with 2.5M logic cells into a compact, half-height, half-length, PCIe 16x form factor.

SKU: NXN-V9P-16X-9GB= 1 Category: Tag:
General
Device Type Expansion module
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 3.0 x16
PCI Specification Revision PCIe 3.0
Networking
Ports QSFP-DD x 2
Connectivity Technology Wired
Cabling Type Ethernet 100GBase-LR4, Ethernet 40GBASE-SR4, Ethernet 40GBase-LR4, Ethernet 100GBase-SR4
Data Link Protocol Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 200 Gigabit Ethernet
Performance PCS/MAC (TX + RX): 6.2ns (min) @ 10Gbps; SERDES/PCS/MAC/CDC (TX+RX) packet trigger: 34ns (min); SERDES/PCS/MAC/CDC (TX+RX) full loopback: 50ns (min); Software latency (60-byte packets) raw frames: 780 ns; Software latency (300-byte packets) raw frames: 999 ns
Processor / Memory
RAM 9 GB
Expansion / Connectivity
Interfaces 2 x 200Gb Ethernet – QSFP28/QSFP+/QSFP-DD
Dimensions & Weight
Depth 6.6 in
Height 2.7 in
