General |

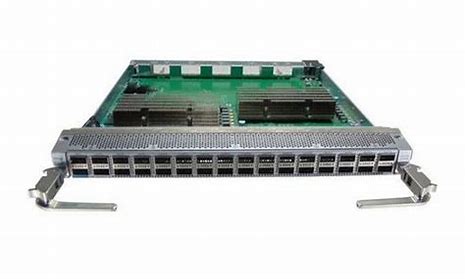

Device Type | Expansion module |
Form Factor | Plug-in module |
Networking |
Ports | 100 Gigabit QSFP28 x 32 |
Connectivity Technology | Wired |
Data Link Protocol | 100 Gigabit Ethernet |
Performance |
Bandwidth | 6.4 Tbps |
Bandwidth (Packets per Second) | 5.95 Bpps |
Capacity |
IP host entries | 104000 |
MAC address entries | 40000 |
Multicast routes | 32000 |
VLANs supported | 4096 |
Virtual Routing and Forwarding (VRF) instances | 2000 |
Per VLAN Rapid Spanning Tree instances | 507 |
MST instances | 64 |
Features |
HSRP support | Yes |
VTEP support | Yes |
Packet buffer | 32MB |
Expansion / Connectivity |
Interfaces | 32 x 100Gb Ethernet – QSFP28 |
Miscellaneous |
MTBF | 693,000 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, KN 61000-4, EN 300386, EN61000-3-3, EN61000-3-2 |
Dimensions & Weight |
Weight | 0.2 oz |
Compatibility Information |
Designed For | P/N: N9K-C9504, N9K-C9504-FM-S, N9K-C9504-FM-S=, N9K-C9508, N9K-C9508-FM-S, N9K-C9508-FM-S= |
