General |
Device Type | Expansion module |
Form Factor | Plug-in module |
Networking |
Ports | 100 Gigabit QSFP28 x 36 |
Connectivity Technology | Wired |
Data Link Protocol | 100 Gigabit Ethernet |
Performance |
Bandwidth | 3.6 Tbps |
Capacity |
Multicast routes | 250,000 |
Virtual interfaces (VLANs) | 4,096 |
Maximum links in a port channel | 32 |
ECMP routing | 256 |
Maximum port channels | 1,000 |
SPAN sessions | 32 |
MAC Address Table Size | 750,000 entries |
Features |
Features | Equal-Cost Multipath (ECMP), built-in ASIC, 12GB packet buffer |
Processor / Memory |
Processor Clock Speed | 2.4 GHz |
RAM | 16 GB |
Flash Memory | 32 GB |
Expansion / Connectivity |
Interfaces | 36 x 100Gb Ethernet – QSFP28 |
Miscellaneous |
MTBF | 117,870 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4 |
Power |
Power Consumption Operational | 902 Watt |
Dimensions & Weight |
Weight | 12.3 lbs |
Compatibility Information |

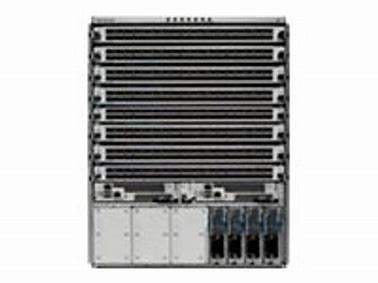

Designed For | P/N: N9K-C9504, N9K-C9504-B2-R, N9K-C9504-FM-R, N9K-C9508, N9K-C9508-B2-R, N9K-C9508-FM-R, N9K-C9508-FM-R= |
