General | |
---|---|
Device Type | Expansion module |
Form Factor | Plug-in module |
Networking | |
Ports | 40 Gigabit QSFP28 x 36 |
Connectivity Technology | Wired |
Data Link Protocol | 40 Gigabit Ethernet |
Performance | Forwarding performance: 1.4 Tbps |
Capacity | Forwarding ASICs: 3 |
MAC address entries: 750,000 | |
Multicast routes: 250,000 | |
VLANs supported: 4096 | |
Max links in port channel: 32 | |
Max port channels: 1000 | |
SPAN sessions: 32 | |
Features | 12GB packet buffer |
Processor / Memory | |
Processor Clock Speed | 2.4 GHz |
RAM | 16 GB |
Flash Memory | 32 GB |
Expansion / Connectivity | |
Interfaces | 36 x 40Gb Ethernet – QSFP28 |
Miscellaneous | |
MTBF | 220,550 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, |
EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 | |
Second Edition, RoHS, GB 4943, EN 60950-1 Second Edition, | |
IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, | |
EN 55022 Class A, CNS 13438 Class A, CAN/CSA C22.2 No. | |
60950-1 Second Edition, EN 300 386, KN 61000-4 | |
Dimensions & Weight | |
Weight | 11.46 lbs |
Network Adapters

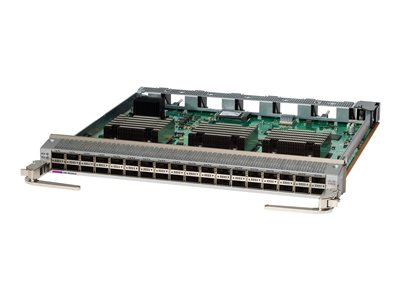

Cisco Nexus X9636Q-R – expansion module – 40 Gigabit QSFP28 x 36
Cisco Nexus X9636Q-R – Expansion module – 40 Gigabit QSFP28 x 36
231,899.00 د.إ
