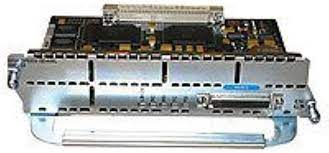

Cisco NM-1HSSI High Speed Serial Interface Network Module

Add to Wishlist

Interface Types: Serial DB60

Bays/Ports/Slots: 1

د.إ3,999.00

Add to Wishlist

Cisco NM-1HSSI High Speed Serial Interface Network Module / Line Card (T3 / DS3) for Cisco 2600XM Series, 2691, 2800, 2811, 2821, 2851, 3640, 3700 Series, 3725, 3745, 3800 Series, 3825, 3845 – New Pull

Cisco recommends a maximum of one NM-1HSSI in a 2691, 2800,3725, or a 3825 and a maximum of two NM-1HSSIs in a 3745 or 3845.

The High Speed Serial Interface (HSSI) is a single port, network module interface that supports speeds up to 52 Mbps over a Wide Area Network. The HSSI network module for the 3600 requires an external T3/E3 CSU for connectivity to the WAN, or can be used in a back-to-back configuration, without the requirement for an external CSU. For use in the Enterprise or Service Provider environment; the HSSI network module can be used for point-to-point connections, Frame-Relay services, or used with inverse multiplexers to distribute your bandwidth over multiple T1/E1 lines.

  • Optional Cables:
    • CAB-HSI1 – HSSI: Cable to TE/E3 CSU, male-to-male connectors, 10 ft
    • CAB-HNUL – HSSI: Back-to-back connection cable, male-to-male connectors, 10 ft
  • Restrictions
    • Maximum 1 supported per 3620, 3725, 2691, 2800,3725, or 3825
    • Maximum 2 3745 or 3845
    • Maximum 3 supported per 3640
    • Maximum 6 supported per 3660
    • Currently not supported in the Cisco 2600 series.
SKU: NM-1HSSI Category:

Cisco Serial Network Connectivity Network Modules Specifications

Table 5. Technical Specifications

Specification NM-1HSSI, NM-4T, NM-4A/S, NM-8A/S, NM-16A/S, NM-16A, NM-32A
Dimensions (H x W x D) 1.55 x 7.10 x 7.2 inches, 4 x 18 x 18.3 cm
Weight 2 lbs., 1 Kg Max
Environmental Conditions · Operational temp. 32-104° F (0-40° C),

· Nonoperational temp -13-158° F (-2 – 70° C)
Relative Humidity 5-95% non-condensing
EMI FCC Class A EMI





Table 6. Supported Features of Serial Network Modules

Network Module Connector Synchronous Sync Max. Speed Asynchronous Full Duplex Half Duplex Bisync
NM-1HSSI HSSI Yes 52 Mbps No Yes No No
NM-4T DB-60 Yes 8 Mbps No Yes No No
NM-4A/S, NM-8A/S DB-60 Yes 128 Kbps Yes Yes Yes Yes
NM-16A/S Smart Serial Yes 128 Kbps Yes Yes Yes Yes
NM-16A, NM-32A High Density Async No N/A Yes Yes No No





Table 7. Serial Protocols Supported

Network Module HSSI EIA-232D EIA-449 EIA-530* EIA-530A* V.35 X.21
NM-1HSSI Yes No No No No No No
NM-4T No Yes Yes Yes No Yes Yes
NM-4A/S, NM-8A/S No Yes Yes Yes No Yes Yes
NM-16A/S No Yes Yes Yes Yes Yes Yes
NM-16A, NM-32A No Yes No No No No No





* EIA-530 and EIA-530A are supported in DTE mode only.

Table 8. Supported Platforms

Network Module 2600XM Series 3620,3640, 3660, 2691 2811, 2821, 2851 3700 Series 3800 Series
NM-1HSSI* No Yes Yes Yes Yes
NM-4T No Yes No Yes Yes
NM-4A/S, NM-8A/S Yes Yes Yes Yes Yes
NM-16A/S Yes Yes Yes Yes Yes
NM-16A, NM-32A Yes Yes Yes Yes Yes





* Cisco recommends a maximum of one NM-1HSSI in a 2691, 2800,3725, or a 3825 and a maximum of two NM-1HSSIs in a 3745 or 3845.

Note: Please see the Cisco Software Advisor for minimum IOS versions required to support a specific network module in a specific router.



Weight: 4 lb
