Cisco One 5520 Wireless Controller – network management device C1-AIR-CT5520-K9
Availability:
10 in stock
54,599.00 د.إ
10 in stock

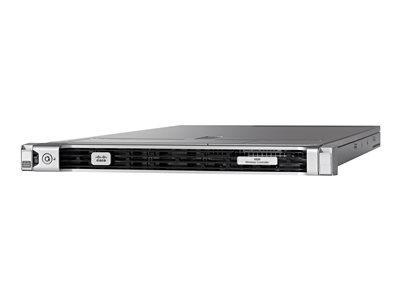

Cisco C1-AIR-CT5520-K9 ONE 5520 Wireless Controller
Overview
The Cisco 5520 series Wireless LAN Controller is a highly scalable, service-rich, resilient, and flexible platform that is ideal for medium-sized to large enterprise and campus deployments. As part of the Cisco Digital Network Architecture, the 5520 is optimized for the next generation of wireless networks, 802.11ac Wave 2.
- Application Visibility and Control (AVC) provides granular classification and prioritization of thousands of business-critical apps with dynamic protocol updates
- Location-aware Bonjour and Chromcast support services advertised across a Layer 3 network at a user and device level
- Embedded Policy Classification Engine offers simplified BYOD with native device profiling and onboard services
- Software-defined segmentation with Cisco TrustSec reduces access control list maintenance, complexity, and overhead
Specifications
General
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Width | 19 in |
| Depth | 31 in |
| Height | 1.7 in |
| Weight | 29.98 lbs |
Networking
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour |
| Routing Protocol | CIDR |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Performance | Throughput: 20 Gbps |
| Capacity | Virtual interfaces (VLANs): 4096 |
| Features | VLAN support, Syslog support, IPv6 support, SNTP support, Mesh networking, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, CleanAir technology, CAPWAP support, rogue access point detection, Cisco VideoStream technology, Cisco FlexConnect |
| Encryption Algorithm | DES, Triple DES, RSA, RC4, MD5, 128-bit WEP, 40-bit WEP, IKE, SSL, SHA-1, TLS 1.0, 104-bit WEP, TKIP, WPA, WPA2, PKI, AES-CCMP, AES-CCM, AES-CBC, TLS 1.1 |
| Authentication Method | RADIUS, X.509 certificates, Radio Service Set ID (SSID), TACACS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.1ae, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u |
Expansion / Connectivity
| Expansion Bays | 10 hot-swap – 2.5″ |
| Interfaces | 2 x 10Gb Ethernet – SFP+ 3 x 1000Base-T (management) – RJ-45 1 x console – RJ-45 2 x USB 3.0 – Type A 1 x keyboard / video / mouse (KVM) 1 x VGA – HD-15 |
Miscellaneous
| Included Accessories | Rack mount kit |
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, UL 6500 Second Edition, ICES-003 Class A, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, KN22 Class A, EN 300386 |
Power
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 770 Watt |
Manufacturer Warranty
| Service & Support | Limited warranty – advance parts replacement – 3 years – response time: 10 days |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| General | |
|---|---|
| Depth | 31 in |
| Device Type | Network management device |
| Height | 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 29.98 lbs |
| Width | 19 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Max Operating Temperature | 95 °F |
| Min Operating Temperature | 41 °F |
| Expansion / Connectivity | |
|---|---|
| Expansion Bays | 10 hot-swap – 2.5″ |
| Interfaces | 2 x 10Gb Ethernet – SFP+ ¦ 3 x 1000Base-T (management) – RJ-45 ¦ 1 x console – RJ-45 ¦ 2 x USB 3.0 – Type A ¦ 1 x keyboard / video / mouse (KVM) ¦ 1 x VGA – HD-15 |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – advance parts replacement – 3 years – response time: 10 days |
| Miscellaneous | |
|---|---|
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, UL 6500 Second Edition, ICES-003 Class A, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, KN22 Class A, EN 300386 |
| Included Accessories | Rack mount kit |
| Networking | |
|---|---|
| Authentication Method | RADIUS, X.509 certificates, Radio Service Set ID (SSID), TACACS, Extensible Authentication Protocol (EAP) |
| Capacity | Virtual interfaces (VLANs): 4096 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.1ae, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Encryption Algorithm | DES, Triple DES, RSA, RC4, MD5, 128-bit WEP, 40-bit WEP, IKE, SSL, SHA-1, TLS 1.0, 104-bit WEP, TKIP, WPA, WPA2, PKI, AES-CCMP, AES-CCM, AES-CBC, TLS 1.1 |
| Features | VLAN support, Syslog support, IPv6 support, SNTP support, Mesh networking, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, CleanAir technology, CAPWAP support, rogue access point detection, Cisco VideoStream technology, Cisco FlexConnect |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour |
| Performance | Throughput: 20 Gbps |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Routing Protocol | CIDR |
| Power | |
|---|---|
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply – hot-plug |
| Power Provided | 770 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
