Routers

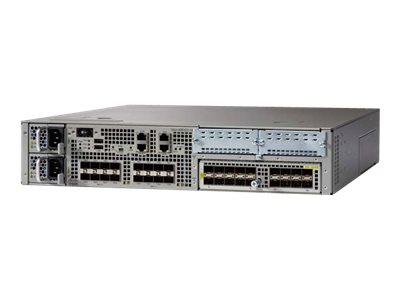

Cisco ONE ASR 1002-HX – router – rack-mountable
Tech overview
Cisco ONE ASR 1002-HX – Router – 10 GigE – front to back airflow – rack-mountable
AED598,499.00
The Cisco ASR 1002-HX router offers embedded services for enterprise and service provider networks in a 2-rack unit (2RU) small form factor. It is integrated with a route processor, embedded services processor, and SPA interface processor. The ASR 1002-HX is ideal for enterprise branch offices, and as a high-performing edge solution for a private WAN.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable – modular – 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Performance | ESP bandwidth: 100 Gbps ¦ Encryption throughput: up to 25 Gbps |
| Capacity | IPSec tunnels: 8000 |
| Network / Transport Protocol | IPSec |
| Features | NAT support, Deep Packet Inspection (DPI), Access Control List (ACL) support, Quality of Service (QoS), NetFlow, DiffServ Code Point (DSCP) support, In-Service Software Upgrade (ISSU) |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, VCCI Class A, AS/NZS CISPR 22, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386 |
| RAM | 16 GB (installed) / 16 GB (max) |
| Status Indicators | Power, active, standby, status |
| Expansion / Connectivity |
| Interfaces | 8 x 1000Base-X – SFP (mini-GBIC) ¦ 8 x 10GBase-X – SFP+ ¦ Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ USB: 2 x 4 pin USB Type A ¦ USB: 1 x console |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 1 (max) |
| Power |
| Power Device | Internal power supply – hot-plug – 500 Watt |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Miscellaneous |
| Included Accessories | Ethernet Port Adapter (EPA) blank cover, faceplate blank cover |
| Software / System Requirements |
| OS Required | Cisco IOS XE 16.2.1S |
| Dimensions & Weight |
| Width | 17.3 in |
| Depth | 19.3 in |
| Height | 3.5 in |
| Weight | 34.06 lbs |
There are no reviews yet.
