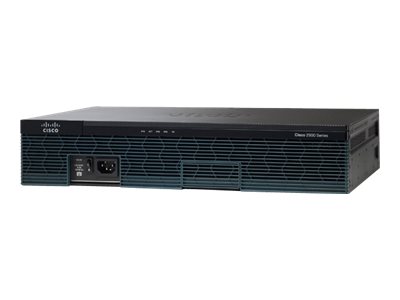

Cisco ONE ISR 2911 – router – desktop, rack-mountable
Tech overview
AED11,999.00
Cisco 2900 Series Integrated Services Routers build on 25 years of Cisco innovation and product leadership. The platforms are architected to enable the next phase of branch-office evolution, providing rich media collaboration and virtualization to the branch while maximizing operational cost savings The Integrated Services Routers Generation 2 platforms are future-enabled with multi-core CPUs, support for high capacity DSPs (Digital Signal Processors) for future enhanced video capabilities, high powered service modules with improved availability, Gigabit Ethernet switching with enhanced POE, and energy monitoring and control capabilities while enhancing overall system performance. Additionally, a Cisco IOS Software Universal image and Services Ready Engine module enable you to decouple the deployment of hardware and software, providing a flexible technology foundation which can quickly adapt to evolving network requirements. Overall, the Cisco 2900 Series offer unparalleled total cost of ownership savings and network agility through the intelligent integration of market leading security, unified communications, wireless, and application services.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable – modular – 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Cisco Unified SRST sessions: 50 |
| Cisco Unified CCME Sessions: 50 |
| Network / Transport Protocol | IPSec, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, |
| static IP routing, IGMPv3, GRE, PIM-SSM, |
| static IPv4 routing, static IPv6 routing, |
| policy-based routing (PBR), MPLS |
| Remote Management Protocol | SNMP, RMON |
| Features |
| Firewall protection | Yes |
| VPN support | Yes |
| MPLS support | Yes |
| VLAN support | Yes |
| Syslog support | Yes |
| IPv6 support | Yes |
| CBWFQ | Yes |
| WRED | Yes |
| Quality of Service (QoS) | Yes |
| WSMA | Yes |
| TR-069 Agent | Yes |
| NetFlow | Yes |
| Compliant Standards |
| IEEE 802.3ah | Yes |
| IEEE 802.1ah | Yes |
| IEEE 802.1ag | Yes |
| VCCI | Yes |
| CISPR 22 Class A | Yes |
| CISPR 24 | Yes |
| EN 61000-3-2 | Yes |
| EN55024 | Yes |
| EN55022 Class A | Yes |
| EN50082-1 | Yes |
| AS/NZS 60950-1 | Yes |
| CAN/CSA-E60065-00 | Yes |
| ICES-003 Class A | Yes |
| CS-03 | Yes |
| FCC CFR47 Part 15 | Yes |
| UL 60950-1 | Yes |
| IEC 60950-1 | Yes |
| EN 60950-1 | Yes |
| BSMI CNS 13438 | Yes |
| CSA C22.2 No. 60950-1 | Yes |
| AS/NZS 3548 Class A | Yes |
| EN 300 386 | Yes |
| RAM |
| Installed | 512 MB |
| Max | 2 GB |
| Flash Memory |
| Installed | 256 MB |
| Max | 8 GB |
| Expansion / Connectivity |
| Interfaces |
| 10/100/1000Base-T | 3 x RJ-45 |
| Serial | 1 x console, 1 x auxiliary, 1 x management |
| USB 2.0 | 2 x 4 pin USB Type A |
| Expansion Slots |
| Service Module (SM) | 1 (total) / 1 (free) |
| EHWIC | 4 (total) / 4 (free) |
| ISM | 1 (total) / 1 (free) |
| PVDM | 2 (total) / 2 (free) |
| Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Rack Mounting Kit | Included |
| Software / System Requirements |
| OS Provided | Cisco IOS IP Base |
| Dimensions & Weight |
| Width | 17.3 in |
| Depth | 12 in |
| Height | 3.5 in |
| Weight | 18.08 lbs |
