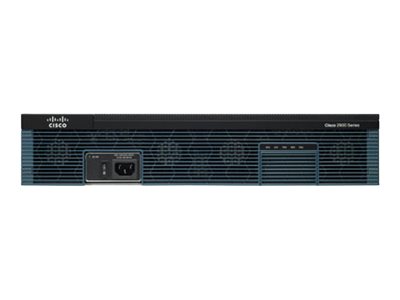

Cisco ONE ISR 2921 – router – rack-mountable

Add to Wishlist

Tech overview

Cisco ONE ISR 2921 – Router – GigE – WAN ports: 3 – rack-mountable

18,899.00 د.إ

Add to Wishlist

Cisco 2900 Series Integrated Services Routers build on 25 years of Cisco innovation and product leadership. The platforms are architected to enable the next phase of branch-office evolution, providing rich media collaboration and virtualization to the branch while maximizing operational cost savings The Integrated Services Routers Generation 2 platforms are future-enabled with multi-core CPUs, support for high capacity DSPs (Digital Signal Processors) for future enhanced video capabilities, high powered service modules with improved availability, Gigabit Ethernet switching with enhanced POE, and energy monitoring and control capabilities while enhancing overall system performance. Additionally, a Cisco IOS Software Universal image and Services Ready Engine module enable you to decouple the deployment of hardware and software, providing a flexible technology foundation which can quickly adapt to evolving network requirements. Overall, the Cisco 2900 Series offer unparalleled total cost of ownership savings and network agility through the intelligent integration of market leading security, unified communications, wireless, and application services

SKU: C1-CISCO2921/K9 Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Rack-mountable – modular – 2U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity
Cisco Unified SRST sessions 100
Cisco Unified CCME Sessions 100
Network / Transport Protocol
IPSec Yes
L2TPv3 Yes
Routing Protocol OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast
Remote Management Protocol SNMP, RMON, TR-069
Features Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, VCCI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, CSA C22.2 No. 60950-1, AS/NZS 3548 Class A, EN 300 386
Memory
RAM 512 MB (installed) / 2 GB (max)
Flash Memory 256 MB (installed) / 8 GB (max)
Status Indicators Power, link/activity
Expansion / Connectivity
Interfaces 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Serial: 1 x console – RJ-45, Management: 1 x console – mini-USB Type B, Serial: 1 x auxiliary – RJ-45, USB 2.0: 2 x 4 pin USB Type A, 1 x SFP (mini-GBIC)
Expansion Slots 1 (total) / 1 (free) x service module (SM), 4 (total) / 4 (free) x EHWIC, 1 (total) / 1 (free) x ISM, 3 (total) / 3 (free) x PVDM
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Provided Cisco IOS IP Base
Dimensions & Weight
Width 17.3 in
Depth 12 in
Height 3.5 in
Weight 29.1 lbs
