Routers

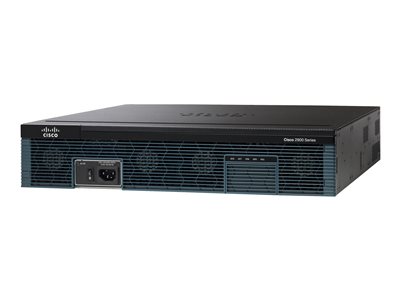

Cisco ONE ISR 2951 – router – rack-mountable
Tech overview
Cisco ONE ISR 2951 – Router – GigE – WAN ports: 3 – rack-mountable
AED33,399.00
The Cisco 2951 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services for small offices.
| Specifications | |
|---|---|
| General | |
| Device Type | Router |
| Enclosure Type | Rack-mountable – modular – 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, RMON, TR-069 |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, VCCI V-3, EN 61000, TIA/EIA/IS-968, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| RAM | 512 MB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x console – mini-USB Type B ¦ Serial: 1 x auxiliary – RJ-45 ¦ USB: 2 x 4 pin USB Type A ¦ 1 x SFP (mini-GBIC) |
| Expansion Slots | 4 (total) / 4 (free) x EHWIC ¦ 3 (total) / 3 (free) x PVDM ¦ 2 (total) / 1 (free) x CompactFlash ¦ 1 (total) / 1 (free) x ISM ¦ 2 (total) / 2 (free) x service module (SM) |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| OS Provided | Cisco IOS IP Base |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 18.5 in |
| Height | 3.5 in |
| Weight | 29.1 lbs |
