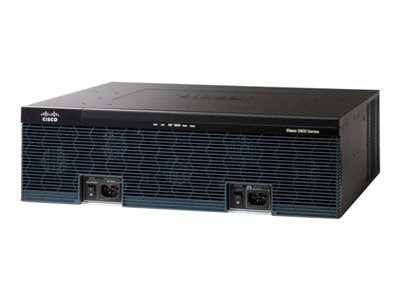

Cisco ONE ISR 3925E – router – desktop, rack-mountable


Tech overview

Cisco ONE ISR 3925E – Router – GigE – rack-mountable

58,199.00 د.إ

Cisco 3900 series Integrated Services Routers build on 25 years of Cisco innovation and product leadership. The Cisco Integrated Services Routers Generation 2 (ISR G2) platforms are architected to enable the next phase of branch-office evolution, providing rich-media collaboration and virtualization to the branch office while maximizing operational cost savings. The routers support high-capacity digital signal processors (DSPs) for future enhanced video capabilities, high-powered service modules with improved availability, multicore CPUs, Gigabit Ethernet switching with Cisco Enhanced Power over Ethernet (ePoE), and new energy visibility and control capabilities while enhancing overall system performance. Overall, the Cisco 3900 series offers exceptional total cost of ownership (TCO) savings and network agility through the intelligent integration of market-leading security, unified communications, wireless, and application services.

The Cisco 3900 series offers embedded hardware encryption acceleration, voice- and video-capable DSP slots, optional firewall, intrusion prevention, call processing, voicemail, and application services. In addition, the platforms support the industry’s widest range of wired and wireless connectivity options such as T1/E1, T3/E3, xDSL, copper, and fiber Gigabit Ethernet.

The Cisco 3900 series offers superior performance and flexibility for flexible network deployments from small business offices to large enterprise offices – all while providing industry-leading investment protection.

SKU: C1-CISCO3925E/K9 Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Desktop, rack-mountable – modular – 3U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol IPSec, PPPoE, L2TPv3
Routing Protocol OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol SNMP, RMON
Encryption Algorithm SSL
Features
Firewall protection Yes
VPN support Yes
MPLS support Yes
Syslog support Yes
Content filtering Yes
IPv6 support Yes
CBWFQ Yes
WRED Yes
ACL support Yes
QoS Yes
DMVPN Yes
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438, EN 300 386
Memory
RAM 1 GB (installed) / 2 GB (max)
Flash Memory 256 MB (installed) / 8 GB (max)
Status Indicators
Power, link/activity
Expansion / Connectivity
Interfaces WAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Management: 1 x console – RJ-45, Management: 1 x console – mini-USB Type B, Serial: 1 x auxiliary – RJ-45, USB 2.0: 2 x 4 pin USB Type A, 2 x SFP (mini-GBIC)
Expansion Slots 3 (total) / 3 (free) x EHWIC, 3 (total) / 3 (free) x PVDM, 2 (total) / 1 (free) x CompactFlash, 1 (total) / 1 (free) x expansion slot, 2 (total) / 2 (free) x service module (SM)
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
Software / System Requirements
OS Provided Cisco IOS IP Base
Dimensions & Weight
Width 18.8 in
Depth 17.3 in
Height 5.3 in
Weight 39.02 lbs
