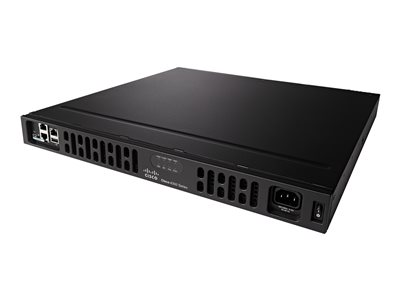

Cisco ONE ISR 4331 – router – rack-mountable
Tech overview
Cisco ONE ISR 4331 – Router – GigE – WAN ports: 3 – rack-mountable
AED19,999.00
This device is a modular router with LAN, WAN connectivity and several interface modules.
| Specifications | |
|---|---|
| General | |
| Device Type | Router |
| Enclosure Type | Rack-mountable – modular – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Aggregate throughput: 100 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, RMON |
| Features | VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| RAM | 4 GB (installed) / 16 GB (max) – DDR3 SDRAM |
| Flash Memory | 4 GB (installed) / 16 GB (max) |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Serial: 1 x console – RJ-45 ¦ Management: 1 x console – mini-USB Type B ¦ Serial: 1 x auxiliary – RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ 2 x SFP (mini-GBIC) ¦ Management: 1 x RJ-45 |
| Expansion Slots | 2 (total) / 2 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 1 (total) / 1 (free) x Enhanced Service Module (SM-X) ¦ 2 (total) / 0 (free) x DIMM 240-pin |
| Power | |
| Power Device | Internal power supply – 250 Watt |
| Installed Qty | 1 (installed) / 1 (max) |
| Voltage Required | DC 24 – 60 V |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| OS Provided | Cisco IOS IP Base |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 17.2 in |
| Height | 1.8 in |
| Weight | 11.02 lbs |
