10 in stock
33,399.00 د.إ
10 in stock

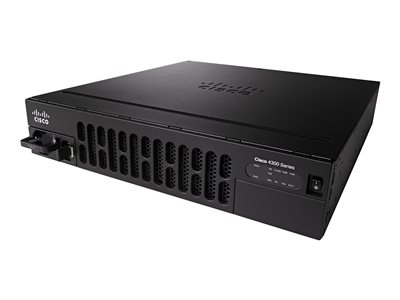

The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With the next levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.
Cisco 4000 family ISRs provide you with Cisco Intelligent WAN (IWAN) software features and a converged branch infrastructure. Along with superior throughput, these capabilities form the building blocks of next-generation branch-office WAN solutions.
| Device Type | Router |
| Enclosure Type | Rack-mountable – modular – 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Aggregate throughput: 200 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, RMON |
| Features | VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| RAM | 4 GB (installed) / 16 GB (max) – DDR3 SDRAM |
| Flash Memory | 4 GB (installed) / 16 GB (max) |
| Interfaces | WAN / LAN: 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Serial: 1 x console – RJ-45 Management: 1 x console – mini-USB Type B Serial: 1 x auxiliary – RJ-45 USB 2.0: 2 x 4 pin USB Type A 3 x SFP (mini-GBIC) Management: 1 x RJ-45 |
| Expansion Slots | 3 (total) / 3 (free) x NIM 1 (total) / 1 (free) x ISC 2 (total) / 2 (free) x Enhanced Service Module (SM-X) 2 (total) / 0 (free) x DIMM 240-pin |
| Power Device | Internal power supply – 430 Watt |
| Installed Qty | 1 (installed) / 1 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Rack Mounting Kit | Included |
| OS Provided | Cisco IOS IP Base |
| Width | 17.2 in |
| Depth | 18.5 in |
| Height | 3.5 in |
| Weight | 28.88 lbs |
| Service & Support | Limited warranty – advance parts replacement – 90 days – response time: 10 days |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 85% |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Device Type | Router |
| Enclosure Type | Rack-mountable – modular – 2U |
| Features | VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX |
| Flash Memory | 4 GB (installed) / 16 GB (max) |
| Network / Transport Protocol | IPSec, PPPoE, DHCP |
| Performance | Aggregate throughput: 200 Mbps |
| RAM | 4 GB (installed) / 16 GB (max) – DDR3 SDRAM |
| Remote Management Protocol | SNMP, RMON |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Dimensions & Weight | |
|---|---|
| Depth | 18.5 in |
| Height | 3.5 in |
| Weight | 28.88 lbs |
| Width | 17.2 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 5 – 85% |
| Max Operating Temperature | 104 °F |
| Min Operating Temperature | 32 °F |
| Expansion / Connectivity | |
|---|---|
| Expansion Slots | 3 (total) / 3 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 2 (total) / 2 (free) x Enhanced Service Module (SM-X) ¦ 2 (total) / 0 (free) x DIMM 240-pin |
| Interfaces | WAN / LAN: 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Serial: 1 x console – RJ-45 ¦ Management: 1 x console – mini-USB Type B ¦ Serial: 1 x auxiliary – RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ 3 x SFP (mini-GBIC) ¦ Management: 1 x RJ-45 |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – advance parts replacement – 90 days – response time: 10 days |
| Miscellaneous | |
|---|---|
| Rack Mounting Kit | Included |
| Power | |
|---|---|
| Installed Qty | 1 (installed) / 1 (max) |
| Power Device | Internal power supply – 430 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
|---|---|
| OS Provided | Cisco IOS IP Base |
