Routers

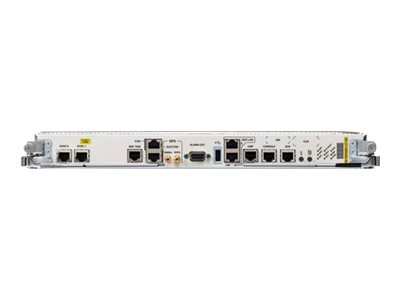

Cisco Route Switch Processor 880-LT for Service Edge 32G – control processor
Tech overview
Cisco Route Switch Processor 880-LT for Service Edge 32G – Control processor – plug-in module – for ASR 9006, 9010, 9904, 9906, 9910
AED444,799.00
The ASR 9000 RSP 880 brings the time-tested and robust carrier-class capabilities of Cisco IOS® XR Software to the Carrier Ethernet edge. The operating system supports true software process modularity. And it allows each process to run in separate protected memory, including each routing protocol, along with multiple instances of control, data, and management planes supported. The software also supports distributed route processing.
The ASR 9000 RSP 880 is designed to deliver the high scalability, performance, and fast convergence required for today’s and tomorrow’s demanding video, cloud, and mobile services. These features provide exceptional scale, service flexibility, and high availability:
The ASR 9000 RSP 880 is designed to deliver the high scalability, performance, and fast convergence required for today’s and tomorrow’s demanding video, cloud, and mobile services. These features provide exceptional scale, service flexibility, and high availability:
? Integrated switch fabric architecture:
? Distributed switch fabric architecture
? Multistage low-latency nonblocking architecture
? Service intelligence and traffic prioritization
? Superior network-timing capabilities with support for:
? Centralized Building Integrated Timing Supply (BITS)
? Precision Time Protocol (PTP), or IEEE 1588-2008, through dedicated 10-Mbps or 100-Mbps Ethernet port
? Bidirectional time of day (ToD) with 10-MHz and 1-pps interfaces
| Specifications |
|---|
| General |
| Device Type | Control processor |
| Width | 15.9 in |
| Depth | 24.6 in |
| Height | 1.6 in |
| Weight | 20.39 lbs |
| Processor / Memory / Storage |
| RAM | 32 GB |
| Flash Memory | 8 GB |
| Hard Drive | SSD 128 GB x 2 |
| Networking |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Status Indicators | Power, HDD activity, status, alarm |
| Expansion / Connectivity |
| Interfaces | 2 x 1000Base-T (management) – RJ-45 ¦ 1 x console – RJ-45 ¦ 1 x auxiliary – RJ-45 ¦ 1 x RS-232/422 ¦ 1 x USB 2.0 – Type A |
| Miscellaneous |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, ICES-003 Class A, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, EN 50121-4, GR-1089-CORE, VCCI Class A, GR-63-CORE, IEC/UL/CSA/EN 60950-1, EN 300 386, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEEE 1588, SR-3580 NEBS Level 3, ETSI 300 019-2-3, ETSI 300 019-1-1, ETSI 300 019-3-1, IEC/EN 61000-3-3, IEC/EN 60825 |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 95% |
| Compatibility Information |
| Designed For | Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9906, 9906 TH, 9910, 9910 Chassis |
