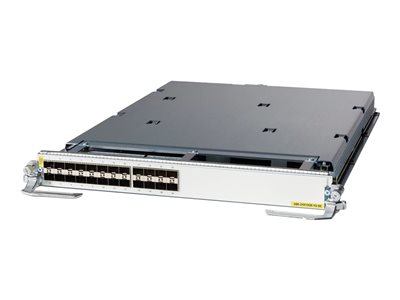

Cisco Service Edge Optimized Line Card – expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 24

Add to Wishlist

Cisco Service Edge Optimized Line Card – Expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 24 – refurbished – for ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2

AED591,699.00

Add to Wishlist

The Cisco ASR 9000 Series 24-Port 10 Gigabit Ethernet Line Cards are fully compatible with all Cisco ASR 9000 Series chassis, route switch processors (RSPs), and line cards. No hardware upgrade to the chassis or cooling system is required. Total bandwidth is dependent on the number and type of RSPs installed.

The line cards, with their synchronization circuitry and dedicated backplane timing traces for accessing the RSP’s Stratum-3 subsystem, provide standards-based line-interface functions for delivering and deriving transport-class network timing, allowing support of network-synchronized services and applications such as mobile backhaul and time-division multiplexing (TDM) migration. Recognizing that real-time media dominate next-generation services, Cisco has integrated media-monitoring technology into the Cisco ASR 9000 Series Ethernet line cards. This multimedia technology allows real-time monitoring and statistics collection of real-time video and voice flows, facilitating proactive maintenance and management of today’s comprehensive media services.

SKU: A9K-24X10GE1GSE-RF 1 Category: Tag:
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports 10 Gigabit SFP+ / SFP (mini-GBIC) x 24
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Features Flow control, full duplex capability, MPLS support, QoS, NetFlow, VCCV
Compliant Standards IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ba, ITU-T Y.1731
Expansion / Connectivity
Interfaces 24 x 10GBase-X – SFP/SFP+
Miscellaneous Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EMC, ICES-003 Class A, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, IEC 60825, VCCI Class A, ETSI 300 019, IEC/UL/CSA/EN 60950-1, EN 300 386, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2
Pricing Type Refurbished
Software / System Requirements OS Required: Cisco IOS XR 6.2.1
Dimensions & Weight
Width 1.6 in
Depth 22 in
Height 14.5 in
Weight 28 lbs
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
Compatibility Information Designed For: Cisco ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2
