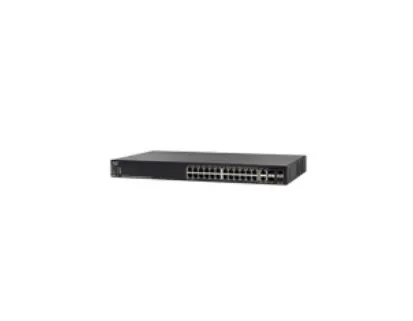

Cisco SG550X-24-K9 Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Add to Wishlist
L3, managed, 24 x 10/100/1000 & 2 x 10 GE combo & 2 x 10GE SFP+, rack-mountable

19,099.00 د.إ

Add to Wishlist

Highlights

Advanced features for demanding environments Get 10 Gigabit Ethernet and advanced capabilities to accelerate your business growth. Our next-generation stackable managed switches can bring immediate productivity gains to your organization. They also get your network ready for more bandwidth-hungry applications in the future.

SKU: SG550X-24-K9-EU Category: Tag:
Feature Details
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Y
Web-based management Y
ARP inspection Y
System event log Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity 2
Gigabit Ethernet (copper) ports quantity 24
Console port RJ-45
USB 2.0 ports quantity 1
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Y
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported Cat5e
Port mirroring Y
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Rate limiting Y
Spanning tree protocol Y
Head-of-line (HOL) blocking Y
Active link detection Y
Cable length detection Y
VLAN support Y
Virtual LAN features Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs 4094
MAC address table 16000 entries
Switching capacity 128 Gbit/s
Forwarding rate 95.23 Mpps
Number of queues 8
Number of IP interfaces 256
Jumbo frames support Y
Jumbo frames 9000
Packet buffer memory 1.5 MB
DHCP features DHCP server, DHCP client
Access Control List (ACL) Y
IGMP snooping Y
Security algorithms 802.1x RADIUS, HTTPS, SSH, SSL/TLS
SSH/SSL support Y
Loop protection Y
BPDU filtering/protection Y
IP-MAC-Port binding Y
Authentication Guest VLAN, Port-based authentication, Web-based authentication
Multicast support Y
Management protocols SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Rack mounting Y
Stackable Y
Form factor 1U
Product colour Black
Reset button Y
LED indicators Y
Number of fans 2 fan(s)
Certification UL (UL 60950), CSA (CSA 22.2), CE, FCC 15 (CFR 47) A
Physical stacking (units) 8
Built-in processor Y
Processor frequency 800 MHz
Internal memory 512 MB
Flash memory 256 MB
Firmware upgradeable Y
Sleep mode Y
Mean time between failures (MTBF) 375790 h
Harmonized System (HS) code 85176990
Minimum system requirements Mozilla Firefox v34+, Microsoft Internet Explorer v9+, Chrome v40+, Safari v5+
Power supply included Y
Redundant power supply (RPS) support Y
AC input voltage 100 – 240 V
AC input frequency 47/63 Hz
Power consumption (typical) 33.5 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 70 °C
Operating relative humidity (H-H) 10 – 90%
Storage relative humidity (H-H) 10 – 90%
Heat dissipation 114.31 BTU/h
Width 440 mm
Depth 257 mm
Height 44 mm
Weight 3.27 kg
Cables included AC, Serial
Quick start guide Y
Rack mount kit Y
Resource CD Y
