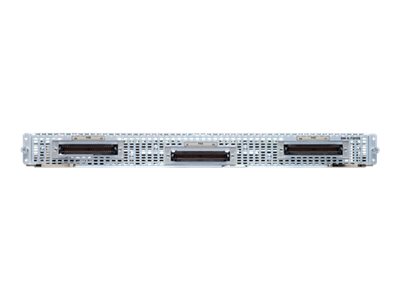

Cisco SM-X-72FXS Service Module – expansion module – FXS x 72

Add to Wishlist

Cisco SM-X-72FXS Service Module – Expansion module – FXS x 72 – for Cisco 4451-X; Integrated Services Router 4331, 4351, 4461; ONE ISR 4331, 4351, 4451-X

AED60,099.00

Add to Wishlist

These Cisco modules provide enterprises, managed services providers, and service providers the ability to directly connect public-switched telephone networks and existing telephony equipment to Cisco compatible routers.

SKU: SM-X-72FXS 1 Category: Tag:
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports FXS x 72
Connectivity Technology Wired
Network / Transport Protocol DHCP, DNS, RTP, RTCP
Remote Management Protocol SNMP, Telnet, HTTP, TFTP
Status Indicators Status
Features RADIUS support, Digital Signal Processing, HSRP support, OIR support, FXS-E (extended loops) support, FXO failover bypass ports
Compliant Standards G.711, G.729a, G.726
Expansion / Connectivity
Interfaces 72 x FXS – RJ-21
Miscellaneous
Compliant Standards NEBS level 3, CISPR 22 Class A, CISPR 22 Class B, CISPR 24, EN55024, EN50082-1, EN55022 Class B, EN 61000-6-1, AS/NZS 60950-1, CS-03, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, TBR21, AS/NZS 3548 Class A, VCCI V-3, TIA/EIA/IS-968, GR-1089-CORE, GR-63-CORE, CNS 13438, ICES-003 issue 4, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1, ES 201 970, GR-78-CORE
Power
Power Consumption Operational 128.16 Watt
Dimensions & Weight
Width 15.6 in
Depth 7.8 in
Height 1.6 in
Weight 4.94 lbs
Environmental Parameters
Min Operating Temperature 32 Ā°F
Max Operating Temperature 104 Ā°F
Compatibility Information
Designed For Cisco 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bundle, 4451-X Integrated Services Router Voice Security Bundle Ā¦ Cisco Integrated Services Router 4331, 4351, 4461 Ā¦ Cisco ONE ISR 4331, 4351, 4451-X
