Network Accessories, Networking

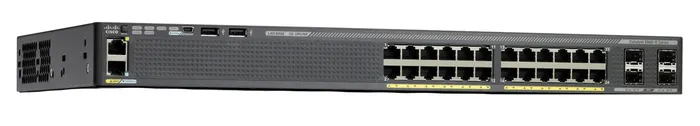

Cisco Small Business 2960X Series Switch – 24-Ports + 4 SFP uplink ports – Gigabit – Power over Ethernet – Layer 2 – Managed – Stackable
Cisco One, Catalyst 2960-X, 24 x 10/100/1000 Ethernet, 4 x SFP, APM86392 600MHz dual core, DRAM 512MB, Flash 128MB, PoE 370W, LAN Base
19,099.00 د.إ
Designed for operational simplicity to lower TCO, this platform also offers superior security capabilities. The switches deliver best-in-class energy efficiency, while preserving your investments through mixed stacking with existing Catalyst 2960-S and SF switches. – Layer 2 – 24-Ports + 4 Gigabit SFP uplinks
| Specification | Details |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| MIB support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 2 |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 1023 |
| MAC address table | 16000 entries |
| Switching capacity | 216 Gbit/s |
| Throughput | 71.4 Mpps |
| Number of queues | 8 |
| Number of static routes | 1000 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 3 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH |
| SSH/SSL support | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast support | Yes |
| Number of multicast groups filtered | 1000 |
| Management protocols | SNMPv3 |
| Switching protocols | UDP, TCP, RADIUS/TACACS+ |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Certification | 47CFR Part 15 (CFR 47), AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, CNS13438 |
| Physical stacking (units) | 8 |
| Built-in processor | Yes |
| Processor model | AppliedMicro APM8639 |
| Processor frequency | 600 MHz |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 43 dB |
| Mean time between failures (MTBF) | 324280 h |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Input current | 5 A |
| Power consumption (typical) | 49 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operating temperature (T-T) | -5 – 40 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage relative humidity (H-H) | 10 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 4000 m |
| Width | 445 mm |
| Depth | 368 mm |
| Height | 45 mm |
| Weight | 5.8 kg |
| Cables included | AC |
| User guide | Yes |
| Power LED | Yes |
| Product family | Small Business |
