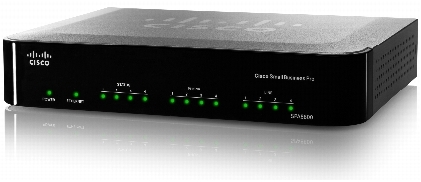

Cisco SPA8800 IP Telephony Gateway with 4 FXS and 4 FXO Ports

Specifications

Specifications

* Note: Many specifications are programmable within a defined range or list of options. Please see the Administration Guide for details. The target configuration profile is uploaded to the Cisco SPA8800 at the time of provisioning.

Data networking

• MAC address (IEEE 802.3)

• IPv4 (RFC 791)

• Address Resolution Protocol (ARP)

• DNS A record (RFC 1706), SRV record (RFC 2782)

• Dynamic Host Configuration Protocol (DHCP) client (RFC 2131)

• DHCP server (RFC 2131)

• Point-to-Point Protocol over Ethernet (PPoE) client (RFC 2516)

• Internet Control Message Protocol (ICMP) (RFC 792)

• Transport Control Protocol (TCP) (RFC 793)

• User Datagram Protocol (UDP) (RFC 768)

• Real Time Protocol (RTP) (RFC 1889, 1890)

• Real Time Control Protocol (RTCP) (RFC 1889)

• Differentiated Services (DiffServ) (RFC 2475), type of service (ToS) (RFC 791, 1349)

• VLAN tagging (IEEE 802.1p)

• Simple Network Time Protocol (SNTP) (RFC 2030)

• Upload data rate limiting: static and automatic

• Quality of service (QoS): voice packet prioritization over other packet types

• MAC address cloning

• Port forwarding

• SIP channels support both User Datagram Protocol (UDP) and TCP transport

• VPN pass-through with IP Security encapsulating security payload (IPsec ESP), Point-to-Point Tunneling Protocol (PPTP), and Layer 2 Tunneling Protocol (L2TP)

Voice features

• SIP version 2

• Dual-tone multifrequency (DTMF) tone detection and generation

• Voice Activity Detection (VAD)

• Comfort Noise Generation (CNG) compatible

• Silence suppression

• Call waiting, call waiting caller ID (FXS ports only)

• Caller ID with name/ number

• Caller ID blocking

• Call forwarding: no answer, busy, all

• Do not disturb

• Call transfer, call return, call back on busy

• Fax: G.711 pass-through or real-time fax over IP via T.38 fax relay

(T.38 support is dependent on fax machine and network/transport resilience)

• Supports multiple voice codecs: G.711a, G.711u, G.726,G.729A, G.723.1

• SIP over TLS

• Three-way conference calling with local mixing

• Per-call authentication and associated routing

• Call blocking with toll restriction

• Delayed disconnect

• Distinctive ringing: calling and called number

• Off-hook warning tone

• Selective/anonymous call rejection

• VoIP to PSTN (USA) service call origination and termination

• PSTN (USA) to VoIP service call origination and termination

• Forward calls to VoIP service: selective, authenticated, all

• Forward calls to PSTN service: selective, authenticated, all

• Automatic PSTN fallback (loss of power or IP service to unit, with quiescence to normal operations): fixed fallback pairing of FXS ports to FXO ports

• Advanced inbound and outbound call routing

• Independent configurable dial plans (1 per port)

• Force PSTN disconnection

FXO behavior features

• PSTN answer delay timer

• PSTN-to-VoIP call max duration timer

• VoIP-to PSTN call max duration timer

• PSTN dialing delay timer

• VoIP dialog refresh interval timer

• PSTN ring time-out timer

International control features

• FXO port impedance: configurable to 16 settings

• Ring frequency: configurable

• SPA to PSTN and PSTN to SPA gain settings

• Ring frequency: maximum setting

• Ring validation time setting

• Tip/ring voltage adjustment setting

• Ring indication delay setting

• Operational loop current minimum value

• Ring time-out setting

• On-hook speed setting

• Ringer impedance setting

• Line-in-use voltage setting

Security

• Password-protected system reset to factory default

• Password-protected administrator and user access authority

• Provisioning/configuration/authentication: HTTPS with factory-installed client certificate

• HTTP digest-encrypted authentication via MD5 (RFC 1321)

• Authentication: Extensible Authentication Protocol TLS (EAP-TLS), EAP Tunneled TLS (EAP-TTLS), and Protected EAP (PEAP)

• SIP over TLS

• Up to 256-bit Advanced Encryption Standard (AES) encryption

Provisioning, administration, and maintenance

• Web browser administration and configuration via integral web server

• Telephone keypad configuration with interactive voice prompts

• Automated provisioning and upgrade via HTTPS, HTTP, Trivial File Transfer Protocol (TFTP)

• Asynchronous notification of upgrade availability via NOTIFY

• Nonintrusive, in-service upgrades

• Report generation and event logging

• Stats in BYE message

• Syslog and debug server records

• Per-line and purpose configurable syslog and debug options

Physical interfaces

• 4 RJ-11 FXS phone ports for analog circuit telephone device(s) (tip/ring)

• 4 RJ-11 FXO line ports for telco or PABX or KTS connection(s)

• RJ-21 (50-pin telco connector) multiport voice connection

• 1 WAN 100BASE-T RJ-45 Ethernet port (IEEE 802.3)

• 1 AUX 100BASE-T RJ-45 Ethernet port (IEEE 802.3) for Maintenance

Subscriber line interface circuit (SLIC)

• Ring voltage: 40-90 Vpk configurable

• Ring frequency: 20-25 Hz

• Ring waveform: trapezoidal

• Maximum ringer load: 5 ringer equivalence numbers (RENs)

• On-hook/off-hook characteristics:

• On-hook voltage (tip/ring): -46 ~ -56V

• Off-hook current: 18-20 mA

• Terminating impedance: 600 ohm resistive or 270 ohm + 750 ohm

• 150 nF complex impedance

• Frequency response 300-3400 Hz

• Return loss (600 ohm, 300-3400 Hz) up to 20 dB

• Insertion loss (1 Vrms at 1 kHz) 3-4 dB

• Total harmonic distortion (THD) (350 mV peak at 300 Hz) up to 3%

• Idle channel noise 72 dB (typical)

• Longitudinal balance 55 dB (typical)

• Off-hook threshold (line seizure) Rdc < 1000 ohm

• On-hook threshold (line release) Rdc >10000 ohm

• Rdc DC supervisory range Rdc > 450 ohm

Regulatory compliance

• IEC 60950-1:2005, Second Edition, with all country deviations

• AS/NZS 60950-1:2003, First Edition

• CAN/CSA 22.2 No. 60950-1-05, Second Edition

• UL 60950-1, Second Edition, 2005

• EN55024

• AS/NRZ 3548:1992 Class A

• CFR 47 Part 15 Class A

• EN55022 Class A

• ICES-003, Issue 2, Class A, April 1997

• Industry Canada CS-03

• TIA-968-A, Addendum 1, 2, 3, 4, 5

• TBR21: January 1998

• Australia AS/ACIF S002: 2005

• Australia AS/ACIF S003: 2008

• New Zealand PTC220: 2008

Power supply

• Switching type (100-240V) automatic

• DC input voltage: 12V DC at 3.0A max.

• Power adapter: 100-240V, 50-60 Hz AC input

Indicator lights/LEDs

• Power, Ethernet, Voice Status, Phone 1 through 4, Line 1 through 4

Documentation

• Quick Start Guide (printed in box)

• Administration Guide

• Provisioning Guide

Environmental

Dimensions
W x H x D

6.69 x 1.54 x 8.66 in.
(170 x 39 x 220 mm)

Weight

2.85 lb (1.30 kg)

Operating temperature

32° to 113°F (0° to 45°C)

Storage temperature

-13° to 185°F (-20° to 85°C)

Operating humidity

10% to 90% noncondensing

Storage humidity

10% to 90% noncondensing

Package Contents

• Cisco SPA8800 IP Telephony Gateway with 4 FXS and 4 FXO Ports

• 12V power adapter

• RJ-45 Ethernet cable

• RJ-11 telephone cable – qty 4

• Quick Start Guide

Product Warranty

1-year limited hardware warranty with return to factory replacement and 90-day limited software warranty
Table 2. Comparison of Cisco Small Business Voice Gateways and Analog Telephone Adapters

Model

Service Lines

Active Calls

3-Way Conference

Public Switched Telephone Network (FXO) Connections

Ethernet Ports

Cisco PAP2T Internet Phone Adapter with 2 VoIP Ports

Cisco SPA2102 Phone Adapter with Router

Cisco SPA3102 Phone Adapter with Router

Cisco SPA8000 8-Port IP Telephony Gateway

Cisco SPA8800 IP Telephony Gateway with 4 FXS and 4 FXO Ports

Cisco WRP400 Wireless-G Broadband Router with 2 Phone Ports
