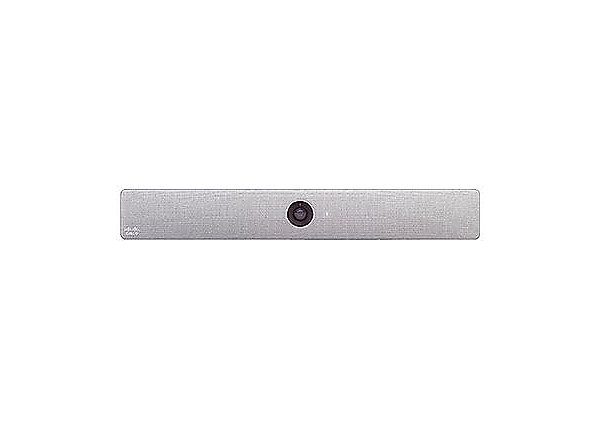

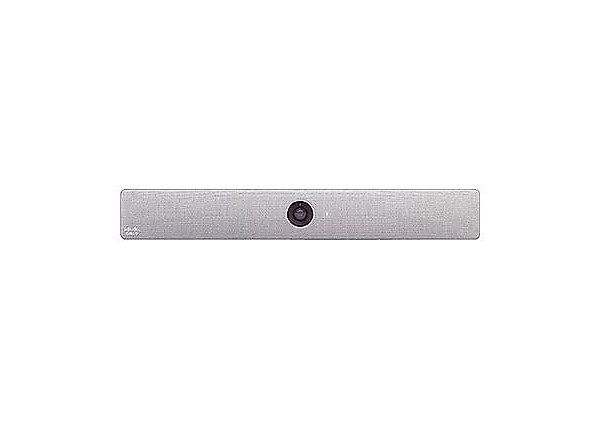

Cisco Webex Spark Room Kit – MSRP – video conferencing kit – with integrated microphone, speakers and Touch 10 ( CS-KIT-MSRP-K9)


19,999.00 د.إ

Cisco Webex Spark Room Kit – MSRP – video conferencing kit – with integrated microphone, speakers and Touch 10 ( CS-KIT-MSRP-K9)

Cisco Webex Room Kit Plus is a powerful collaboration solution that integrates with flat‑panel displays to bring more intelligence and usability to your medium to large-sized meeting rooms – whether registered on the premises or to Cisco Webex in the cloud.

Cisco Webex Room Kit Plus Overview

Cisco Webex Room Kit Plus delivers the unmatched video and audio experience customers have come to expect from Cisco. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations – further removing the barriers to usage and deployment of video in medium to large-sized rooms.

The Room Kit Plus – comprising a powerful codec and a quad-camera bar with integrated speakers and microphones* – is ideal for rooms that seat up to 14 people. It offers sophisticated camera technologies that bring speaker-tracking and auto-framing capabilities to medium to large-sized rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your conference rooms and spaces – whether registered on the premises or to Cisco Webex.

Figure 1.      Cisco Webex Room Kit Plus in Large Conference Room


SKU: CS-KIT-MSRP-K9 Category: Tags: , , ,

Specification

Description

Software compatibility

●  Cisco Collaboration Endpoint Software Version 9.0 or later, or Cisco Webex Room OS

Default components in Cisco Webex Room Kit Plus

●  Cisco Webex Codec Plus
●  Cisco Webex Quad Camera
●  Cisco Touch 10 control unit
●  Wall mount for Quad Camera

Optional hardware components

●  Cisco Table Microphone 20, Wall mount for Codec Plus, cables

Bandwidth

●  Up to 6 Mbps point-to-point

Minimum bandwidth for resolution/frame rate

H.264

●  720p30 from 768 kbps
●  720p60 from 1152 kbps
●  1080p30 from 1472 kbps
●  1080p60 from 2560 kbps

Firewall traversal

●  Cisco Expressway  technology
●  H.460.18, H.460.19 firewall traversal

Video standards

●  H.264, H.265

Video inputs

●  One HDMI input supports formats up to maximum 1080p60
●  Two HDMI inputs support formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
●  Consumer Electronics Control (CEC) 2.0

Video outputs

●  Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
●  Live video resolutions (encode and decode) up to 1920 x 1080p60 (HD1080p)
●  Consumer Electronics Control (CEC) 2.0

Audio standards

●  G.711, G.722, G.722.1, G.729, AAC-LD, and Opus

Audio features

●  High-quality 20 kHz audio
●  Subwoofer line out for Quad Camera
●  Prepared for inductive loop (line out)
●  Automatic Gain Control (AGC)
●  Automatic noise reduction
●  Active lip synchronization

Audio inputs

●  Three microphones, 4-pin mini-jack
●  Two audio in from HDMI

Audio outputs (external)

●  1 line out mini-jack (stereo) (Codec Plus)
●  1 RCA output for subwoofer (Quad Camera)
●  2 HDMI outputs
●  HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera speakers

Speakers (internal)

●  High-quality speakers
●  Frequency response: 70 Hz to 20 kHz
●  Max output level SPL 90dB

Speaker tracking

●  6-element microphone array for accurate speaker tracking

Dual stream

●  H.239 (H.323) dual stream
●  Binary Floor Control Protocol (BFCP) (SIP) dual stream
●  Support resolutions up to 3840 x 2160p5 (4Kp5) and 1080p30

Wireless sharing

●  Cisco Webex Teams app (up to 3840 x 2160p5)
●  Cisco Intelligent Proximity client (up to 1920 x 1080p5)

Multipoint support

●  4-way embedded SIP/H.323 conferencing capability with MultiSite option

MultiSite features
(embedded multipoint)
(optional upgrade)

●  Adaptive SIP/H.323 MultiSite
◦   3-way resolution up to 1080p30 + content up to 4Kp5
◦   4-way resolution up to 720p30 + content up to 4Kp5
●  Full individual audio and video transcoding
●  H.323/SIP/VoIP in the same conference
●  Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5
●  Best Impression (automatic continuous presence layouts)
●  Encryption and dual stream from any site

Protocols

●  H.323
●  SIP
●  Cisco Webex

Embedded encryption

●  H.323 and SIP point-to-point
●  Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
●  Automatic key generation and exchange

IP network features

●  DNS lookup for service configuration
●  Differentiated services (Quality of Service [QoS])
●  IP-adaptive bandwidth management (including flow control)
●  Automatic gatekeeper discovery
●  Dynamic playout and lip-sync buffering
●  H.245 Dual-Tone Multi-frequency (DTMF) tones in H.323
●  RFC 4733 DTMF tones in SIP
●  Date and time support using Network Time Protocol (NTP)
●  Media adaption and resilience
●  Uniform Resource Identifier (URI) dialing
●  Dynamic Host Configuration Protocol (DHCP)
●  802.1X network authentication
●  802.1Q Virtual LAN
●  802.1p (QoS and Class of Service [CoS])

Call control

●  Cisco Unified Communications Manager (CUCM)
◦   Native registration CUCM
◦   Requires CUCM Version 10.5.2 or later with device pack Room Kit Plus
●  Cisco Expressway
◦   Native registration with Expressway
●  Cisco Webex
●  Third-party H.323 Gatekeepers and standards-based SIP proxies

IPv6 network support

●  Single call stack support for both H.323 and SIP
●  Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
●  Support for both static and automatic IP configuration (stateless address auto configuration)

Security features

●  Management using HTTPS and SSH
●  IP administration password
●  Menu administration password
●  Disable IP services
●  Network settings protection

Certificate management

●  Certificate Authority Proxy Function (CAPF) support for additional security
●  Manufacturer-Installed Certificates (MIC)
●  Locally Significant Certificates (LSC)
●  X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported

Other interfaces

●  USB 2.0 port, uUSB, factory reset pinhole

Power supplies (2)

●  100 to 240 VAC, 50/60 Hz, 12V DC input
●  Average 20 W, peak 70W
●  Quad camera must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019

Operating temperature and humidity

●  0°C to 35°C (32°F to 95°F) ambient temperature
●  10% to 90% Relative Humidity (RH)

Storage and transport temperature

●  -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing)

Locking mechanism

●  Kensington security lock

Dimensions


●  Quad Camera:
◦   Width: 37.4 in. (95.0 cm)
◦   Height: 4.7 in. (12.0 cm)
◦   Depth: 4.0 in. (10.3 cm)
◦   Weight: 10.6 lb. (4.8 kg)


●  Codec Plus:
◦   Width: 14.1 in. (35.9 cm)
◦   Height: 1.7 in. (4.3 cm)
◦   Depth: 5.6 in. (14.3 cm)
◦   Weight: 3.9 lb. (1.77 kg)

Camera overview

●  5K Ultra HD camera
●  Support up to 60 fps
●  15.1 MP image sensor
●  1/1.7 CMOS
●  5x digital zoom (3 tele-lenses each with 50° horizontal field of view)
●  f/2.0 aperture
●  83° horizontal field of view; 51.5° vertical field of view
●  Auto-framing (audio + face detect)
●  5120 x 2880 pixel resolution
●  Auto focus, brightness, and white balance
●  Focus distance 1 m to infinity
