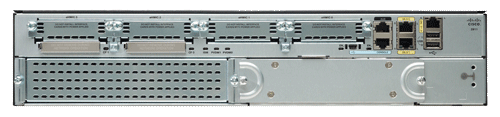

Cisco 2911 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application service. Key features include:

• 3 integrated 10/100/1000 Ethernet ports (RJ-45 only)
• 1 service module slot
• 4 enhanced high-speed WAN interface card slots
• 2 onboard digital signal processor (DSP) slots
• 1 Internal Service Module slot for application services
• Fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE
• Security
  • Embedded hardware-accelerated VPN encryption for secure connectivity and collaborative communications Integrated threat control using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, Cisco IOS IPS, and Cisco IOS Content Filtering
  • Identity management using authentication, authorization, and accounting (AAA) and public key infrastructure
• Voice
  • High-density-packet voice DSP module, optimized for voice and video support
  • Standards-certified VoiceXML browser services
  • Cisco Unified Border Element capabilities
  • Cisco Unity Express voicemail support
  • Support for Cisco Communications Manager Express and Survivable Remote Site Telephony

  C2911-VSEC-CUBE/K9 Data Sheet
  Manufacturer	Cisco Systems, Inc
  Manufacturer Part Number	C2911-VSEC-CUBE/K9
  Product Type	Router
  Form Factor	Desktop – modular – 2U
  Connectivity Technology	Wired
  Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
  Network / Transport Protocol	IPSec
  Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing
  Remote Management Protocol	SNMP, RMON
  Encryption Algorithm	SSL
  Features	Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Dynamic Multipoint VPN (DMVPN)
  Compliant Standards	IEEE 802.1ah, IEEE 802.1ag
  DRAM Memory	512 MB (installed) / 2 GB (max)
  Flash Memory	256 MB (installed) / 8 GB (max)
  LED Status Lights Indicators	Link activity, power
  Communications
  Type	Voice / fax module
  Digital Ports Qty	16
  IP Telephony
  Voice Codecs	G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726
  Connectivity Slots
  Router Interfaces	3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Management : 1 x console – RJ-45 Management : 1 x console – mini-USB Type B Serial : 1 x auxiliary – RJ-45 USB : 2 x 4 pin USB Type A
  Expansion Slot(s)	4 (total) / 4 (free) x HWIC 2 (total) / 1 (free) x PVDM 2 (total) / 1 (free) x CompactFlash Card 1 (total) / 1 (free) x expansion slot
  Power Supply
  Power Device	Power supply – internal
  Voltage Required	AC 120/230 V ( 50/60 Hz )
  Dimensions / Weight / Miscellaneous
  Approximate Width	17.2 in
  Depth	12 in
  Height	1.8 in
  Weight	18.1 lbs
  Compliant Standards	CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, AS/NZS 3548, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438
  System software
  Software Included	Cisco IOS Unified Communications, Cisco IOS Security, Cisco Unified Border Element (25 sessions)
