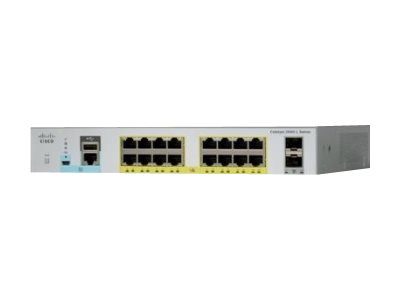

Cisco Systems WS-C2960L-16TS-LL Catalyst 2960l 16 Port Gige WS-C2960L-16TS-LL
AED4,899.00
Cisco Systems WS-C2960L-16TS-LL Catalyst 2960l 16 Port Gige
Overview
Cisco Catalyst 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations.
Network security
The Cisco Catalyst 2960-L Series Switches provide a range of security features to limit access to the network and mitigate threats.
Enhanced quality of service
The Cisco Catalyst 2960-L Series Switches offers intelligent traffic management that keeps everything flowing smoothly. Flexible mechanisms for marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed.
Intelligent power over Ethernet Plus
Cisco Catalyst 2960-L Series Switches support both IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at PoE+ to deliver lower total cost of ownership for deployments. PoE removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments.
Specifications
General
| Device Type | Switch – 16 ports – managed |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 + 2 x Gigabit SFP (uplink) |
| Performance | Switching bandwidth: 36 Gbps Forwarding bandwidth: 18 Gbps |
| Capacity | MAC addresses: 8000 VLANs supported: 4094 Active VLANs: 64 SPAN bidirectional sessions: 1 |
| Jumbo Frame Support | 10240 bytes |
| Routing Protocol | IGMP |
| Remote Management Protocol | SNMP 3, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 2 switching, ARP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), MAC Address Notification, Per-VLAN Rapid Spanning Tree (PVRST), per-port broadcast throttling, Dynamic VLAN Support (GVRP), SNMP support, IGMP filtering, VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az |
| Processor | ARM7: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | System, status, PoE, link/speed |
Expansion / Connectivity
| Interfaces | 16 x 1000Base-T RJ-45 1 x console RJ-45 1 x console (mini-USB) Type B 1 x USB Type A 2 x 1000Base-X SFP uplink |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
Miscellaneous
| MTBF | 2,416,689 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, RoHS 2011/65/EU, AS/NZS CISPR22:2004 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300386 |
Software / System Requirements
| Software Included | Cisco IOS LAN Lite |
Dimensions & Weight
| Width | 10.6 in |
| Depth | 8.5 in |
| Height | 1.7 in |
| Weight | 4.54 lbs |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 – 90% |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 – 95% |
| General | |
|---|---|
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | MAC addresses: 8000 ¦ VLANs supported: 4094 ¦ Active VLANs: 64 ¦ SPAN bidirectional sessions: 1 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az |
| Device Type | Switch – 16 ports – managed |
| Enclosure Type | Desktop, rack-mountable |
| Features | Layer 2 switching, ARP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), MAC Address Notification, Per-VLAN Rapid Spanning Tree (PVRST), per-port broadcast throttling, Dynamic VLAN Support (GVRP), SNMP support, IGMP filtering, VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP) |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 10240 bytes |
| Performance | Switching bandwidth: 36 Gbps ¦ Forwarding bandwidth: 18 Gbps |
| Ports | 16 x 10/100/1000 + 2 x Gigabit SFP (uplink) |
| Processor | ARM7: 800 MHz |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 3, CLI |
| Routing Protocol | IGMP |
| Status Indicators | System, status, PoE, link/speed |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 8.5 in |
| Height | 1.7 in |
| Weight | 4.54 lbs |
| Width | 10.6 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 5 – 90% |
| Humidity Range Storage | 5 – 95% |
| Max Operating Temperature | 131 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 23 °F |
| Min Storage Temperature | -13 °F |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 16 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 2 x 1000Base-X SFP uplink |
| Miscellaneous | |
|---|---|
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, EN 300386, RoHS 2011/65/EU, AS/NZS CISPR22:2004 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA C22.2 No. 60950-1 Second Edition |
| MTBF | 2,416,689 hours |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| Software / System Requirements | |
|---|---|
| Software Included | Cisco IOS LAN Lite |
