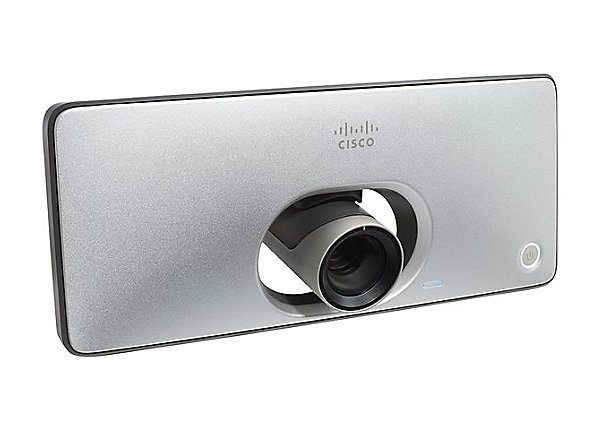

Cisco TelePresence SX10 HD Quick Set video conferencing device CTS-SX10N-K9

Add to Wishlist

15,999.00 د.إ

Add to Wishlist

Cisco CTS-SX10N-K9 Overview

The TelePresence SX10 Quick Set from Cisco is a one-piece camera and codec-streaming device that works with your own flat-panel display to provide a telepresence interface (display not included). The PoE-enabled SX10 Quick Set is Cisco’s introductory-level telepresence package, designed for small to medium companies or for multiple-unit use in larger enterprises. Control the set through the on-screen GUI, the included TRC6 remote control, via your iOS or Android device (using the optional Cisco Intelligent Proximity program), or through the optional TelePresence Touch 10 controller.

The SX10 Quick Set’s video features include dual HDMI and VGA–compatible inputs, multiple live-video resolutions at up to 1080p30, far-end camera control, and automatic/manual focus, iris, and white balance functions. The built-in camera provides an 83° field-of-view, a maximum aperture of f/2.1, and a 5x zoom range. Dual-streaming capability enables you to share content at a resolution of 1080p5. Audio options include an integrated microphone, HDMI audio-in and out, and 4-pin input and output mini-jacks.

The SX10 Quick Set is compatible with the Cisco Spark conferencing app and the Cisco Intelligent Proximity mobile content-sharing app. The SX10 Quick Set can also control room peripherals (lights, dividers, curtains, etc.) when used with the optional Cisco TelePresence Touch 10 remote controller.

Compact unit houses both the PTZ camera and the codec streamer
Plug-and-play setup with PoE compatibility
Streaming video at up to 1080p30 resolution
Camera features include an 83° field-of-view and a 5x zoom
Dual-streaming enables content sharing at 1080p5 resolution
Includes one TRC6 remote control and is compatible with the optional Touch 10 RC, and iOS/Android RC (requires optional Cisco Intelligent Proximity app)
Integrated microphone plus 4-pin mini-jack input and HDMI audio-in
Automatic and manual focus, iris, and white-balance control

Product Highlights

  • Compact One-Piece PTZ Camera/Codec Unit
  • Plug-and-Play, PoE, LAN Interface
  • 1080p Video up to 30 fps
  • Wide Angle 83°FOV with 5x Zoom
  • Dual-Streaming for Content Sharing
  • Integrated Microphone
  • TRC6 Remote Control Included
  • Auto/Manual Focus/Iris/WB Functions
  • RC via iOS and Android Mobile Devices
  • Compatible with TelePresence Touch 10
SKU: CTS-SX10N-K9 Category: Tags: , , , ,

Cisco CTS-SX10N-K9 Specs
Camera Zoom
5x zoom (2.65 optical/digital zoom)
Pan & Tilt Range
+5 to -25° tilt
+30 to -30° pan
Field of View (H x V)
83 x 51°
Maximum Lens Aperture
f/2.1
Camera Controls
Focus: manual/automatic
Iris: manual/automatic
White Balance: manual/automatic
Image Flipping: automatic when upside-down
User Interface
TRC6 remote control
On-screen GUI
Cisco Telepresence Touch 10 (optional, not included) iOS and Android devices (using optional Cisco Intelligent Proximity app)
Maximum Bandwidth
Up to 3 Mbps
Minimum Bandwidth
1080p30 from 1472 kbps
720p30 from 768 kbps
Video Standards
H.263, H.263+, and H.264
Video Inputs & Formats
2 Inputs:
HDMI or VGA (user-selectable)

Supported Formats:
640×480 (VGA)
720×480
704×576 (4CIF)
800×600 (SVGA)
848×480
1024×768 (XGA)
1152×864 (XGA+)
1280×720 (720p)
1280×768 (WXGA)
1920 x 1080@30 (HD1080p)
EDID (Extended Display Identification Data)
Video Output Formats
1080p60
VESA Monitor Power Management
Extended Display Identification Data (EDID)
Resolution-Live Video
(Decode only):
176 x 144@30 (QCIF)

(Encode and Decode):
352 x 288@30 (CIF)
512 x 288@30 (w288p)
576 x 448@30 (448p)
768 x 448@30 (w448p)
704 x 576@30 (4CIF)
1024 x 576@30 (w576p)
640 x 480@30 (VGA)
800 x 600@30 (SVGA)
1024 x 768@30 (XGA)
1280 x 768@30 (WXGA)
1280 x 720@30 (HD720p)
1920 x 1080@30 (HD1080p)
Audio Standards
64 kbps MPEG4 AAC-LD
OPUS
G.722, G.722.1, G.711mu, G.711a, G.729ab, and G.729
Audio Inputs
Internal microphone
External microphone:4-pin mini-jack
HDMI audio-in
Audio Outputs
Line Out: 4-pin mini-jack
HDMI (digital main audio)
Dual Stream
H.239 (H.323) dual stream (CE8.2 or later)
BFCP (SIP) dual stream
Resolution up to 1080p5 (CE8.0 or later)
Multipoint Technology
Cisco Ad-Hoc Conferencing
(requires Cisco UCM, Cisco TelePresence Server, and Cisco TelePresence Conductor)
Protocols
H.323, SIP
H.323 (CE8.2 or later)
Connectivity Interfaces
1 x PoE-enabled LAN connector (RJ-45) 100 Mb
1 x USB port (for future usage)
1 x Micro-USB port (for debugging)
PoE
Compatible
Power Input
100 – 240 VAC, 50/60 Hz
Power Consumption (Maximum)
12 W
Operating Temperature & Humidity
32 to 104°F (0 to 40°C) at 10-90% relative humidity (non-condensing)
Storage Temperature & Humidity
-4 to 140°F (-20 to 60°C) at 10-90% relative humidity (non-condensing)
Dimensions (WxHxD)
SX10 Unit: 10.8 x 4.6 x 3.6″ (27.4 x 11.7 x 9.1 cm)
Weight
SX10 Unit: 2 lb (0.9 kg)
Packaging Info
Package Weight
6.4 lb
Box Dimensions (LxWxH)
18.2 x 13.1 x 7.5″
