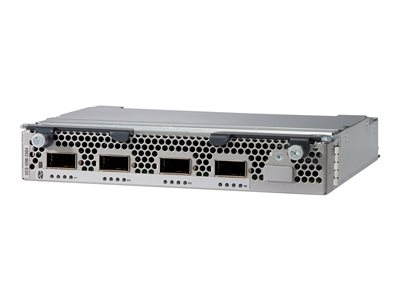

Cisco UCS 2304 Fabric Extender – expansion module – 40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8

Add to Wishlist

Cisco UCS 2304 Fabric Extender – Expansion module – 40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8 – for UCS 5108, SmartPlay Select 5108; UCS 5108 Blade Server Chassis

AED32,799.00

Add to Wishlist

Cisco UCS 2304 Fabric Extender brings the unified fabric into the blade server enclosure, providing multiple 40 Gigabit Ethernet connections between blade servers and the fabric interconnect, simplifying diagnostics, cabling, and management.

SKU: UCS-IOM-2304= 1 Category: Tag:
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports 40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8
Connectivity Technology Wired
Data Link Protocol Fibre Channel over Ethernet (FCoE), 40 Gigabit Ethernet
Performance
Forwarding performance 960 Gbps
Capacity VLANs supported: 1024 ¦ Jumbo frame size: 9216
Features VLAN support, Weighted Round Robin (WRR) queuing, High Availability, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Quality of Service (QoS), Jumbo Frames support, Class of Service (CoS), Fabric Extender Transceiver (FET)
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.1Qaz, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA-C22.2 No. 60950-1, EN 300386
Expansion / Connectivity
Interfaces 4 x 40Gb Ethernet / FCoE (uplink) – QSFP+ ¦ 8 x 40Gb Ethernet – backplane
Dimensions & Weight
Width 1.4 in
Depth 7.2 in
Height 7.6 in
Weight 2.5 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
Compatibility Information
Designed For Cisco UCS 5108 Blade Server Chassis, SmartPlay Select 5108 Chassis ¦ Cisco UCS 5108 Blade Server Chassis SmartPlay 8 Expansion Pack, SmartPlay Base, SmartPlay Select, SmartPlay Select (Tracer)
