General | |
---|---|
Device Type | Expansion module |
Form Factor | Plug-in module |
Bundled with | 16 x 25GBASE-SR SFP Modules (SFP-25G-SR-S) |
Networking | |
Ports | 25 Gigabit SFP28 x 8 |
Connectivity Technology | Wired |
Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
Performance | Forwarding performance: 1.04 Tbps |
Capacity | VLANs supported: 1024 ¦ Jumbo frame size: 9216 |
Features | VLAN support, DCBX support, QoS, LACP, CoS, FCoE support, PFC, WRR, VLAN trunking |
Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Qaz, IEEE 802.3by |
Expansion / Connectivity | Interfaces |
8 x 25Gb Ethernet – SFP28 | |
32 x 10Gb Ethernet (internal) | |
Miscellaneous | Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, GB 4943, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A |
Dimensions & Weight | Width: 1.4 in, Depth: 7.2 in, Height: 7.6 in, Weight: 2.5 lbs |
Environmental Parameters | Min Operating Temperature: 32 °F, Max Operating Temperature: 104 °F, Humidity Range Operating: 5 – 95% (non-condensing) |
Compatibility Information | Designed For |
P/N: UCSB-5108-AC2, UCSB-5108-AC2=, UCSB-5108-AC2-UPG, UCSB-5108-DC2, UCSB-5108-DC2=, UCSB-5108-DC2-UPG, UCSB-5108-HVDC, UCSB-5108-HVDC=, UCSB-5108-HVDC-UPG |
Network Adapters

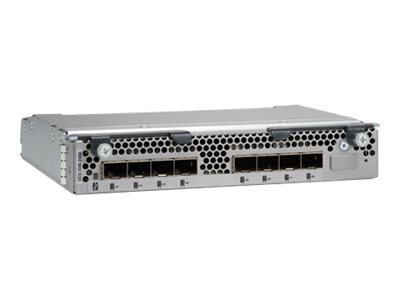

Cisco UCS 2408 Fabric Extender – expansion module – 25 Gigabit SFP28 x 8
Cisco UCS 2408 Fabric Extender – Expansion module – 25 Gigabit SFP28 x 8 – with 16 x 25GBASE-SR SFP Modules (SFP-25G-SR-S) – for P/N: UCSB-5108-DC2=, UCSB-5108-HVDC, UCSB-5108-HVDC=, UCSB-5108-HVDC-UPG
AED61,799.00
