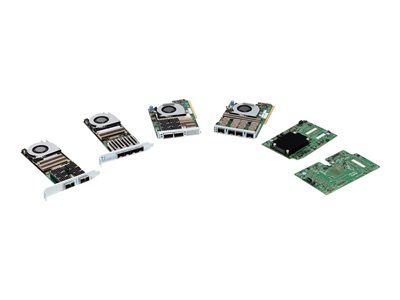

The Cisco UCS Virtual Interface Card (VIC) 1400 series extends the network fabric directly to both servers and virtual machines so that a single connectivity mechanism can be used to connect both physical and virtual servers with the same level of visibility and control. Cisco VICs provide complete programmability of the Cisco UCS I/O infrastructure, with the number and type of I/O interfaces configurable with a zero-touch model. The Cisco UCS VIC 1467 is a quad-port, small form-factor, pluggable mLOM card designed for the M6 generation of Cisco UCS C-series rack servers. The card supports 10/25Gbps Ethernet or FCoE. The card can present PCIe standards-compliant interfaces to the host, and these can be dynamically configured as either NICs or HBA.
Network Adapters
Cisco UCS Virtual Interface Card 1477 – network adapter – PCIe 3.0 x16 – 40Gb Ethernet / 100Gb Ethernet QSFP28 x 2
Cisco UCS Virtual Interface Card 1477 – Network adapter – PCIe 3.0 x16 – 40Gb Ethernet / 100Gb Ethernet QSFP28 x 2 – for P/N: UCSC-C220-M6N=, UCSC-C225-M6S=, UCSC-C240-M6N=, UCSC-C240-M6S=, UCSC-C245-M6SX=
AED6,799.00
Category | Details |
---|
General |
Device Type | Network adapter |
Form Factor | Plug-in module |
Interface (Bus) Type | PCI Express 3.0 x16 |
Networking |
Ports | 40Gb Ethernet / 100Gb Ethernet QSFP28 x 2 |
Connectivity Technology | Wired |
Data Link Protocol | 40 Gigabit Ethernet, 100 Gigabit Ethernet, 40Gb Fibre Channel over Ethernet (FCoE), 100Gb Fibre Channel over Ethernet (FCoE) |
Capacity | Jumbo frame size: 9 KB |
Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI, IPv4, IPv6 |
Features | RDMA support, Single Root I/O Virtualization (SR-IOV), NetFlow, Transparent (N_Port ID Virtualization – NPIV) mode support, iSCSI boot, Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2, Data Plane Development Kit (DPDK), virtual machine multiqueues (VMMQ), usNIC, GENEVE support, NetQueue, receive flow steering |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1BR |
Expansion / Connectivity |
Interfaces | 2 x 40Gb Ethernet/100Gb Ethernet – QSFP28 |
Power |
Power Consumption Operational | 42.4 Watt |
Dimensions & Weight |
Width | 4 in |
Depth | 6.3 in |
Height | 0.7 in |
Compatibility Information |
Designed For | P/N: UCSC-C220-M6N, UCSC-C220-M6N=, UCSC-C220-M6S, UCSC-C220-M6S=, UCSC-C220-M6S-BR, UCSC-C225-M6N, UCSC-C225-M6S, UCSC-C225-M6S=, UCSC-C240-M6L, UCSC-C240-M6L-BR, UCSC-C240-M6N, UCSC-C240-M6N=, UCSC-C240-M6S, UCSC-C240-M6S=, UCSC-C240-M6SN, UCSC-C240-M6SN-BR, UCSC-C240-M6SX, UCSC-C240-M6SX=, UCSC-C240-M6SX-BR, UCSC-C245-M6SX, UCSC-C245-M6SX= |
