Cisco UCS Virtual Interface Card 15230 – network adapter – PCIe 4.0 x16 – 100 Gigabit Ethernet x 2

Add to Wishlist

Cisco UCS Virtual Interface Card 15230 – Network adapter – PCIe 4.0 x16 – 100 Gigabit Ethernet x 2 – for P/N: UCSX-210C-M7-NEW, UCSX-210C-M7-U, UCSX-410C-M7-U, UCSX-9508-D-U

AED7,499.00

Add to Wishlist

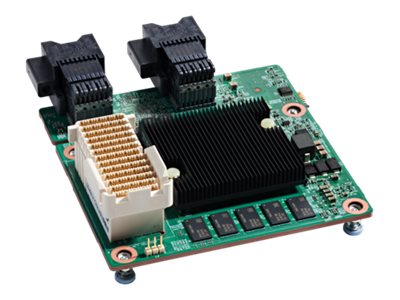

The Cisco UCS VIC 15230 is a 2x 100 Gbps Ethernet/FCoE-capable modular LAN on motherboard (mLOM) adapter designed exclusively for the Cisco UCS X210c Compute Node. The Cisco UCS VIC 15230 adapter enables a policy-based, stateless, agile server infrastructure that can present to the host PCIe standards-compliant interfaces that can be dynamically configured as either NICs or HBAs.

SKU: UCSX-MLV5D200GV2D 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in module
Interface (Bus) Type PCI Express 4.0 x16
Networking
Ports 100 Gigabit Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet
Fibre Channel SCSI-FCP
Data Transfer Rate 100 Gbps
Performance Maximum IOPS: 900000 operations per second <br> Throughput: 200 Gbps
Capacity Jumbo frame size: 9 KB <br> Latency: 1 Ī¼s <br> Virtual interfaces (VLANs): 512
Network / Transport Protocol TCP/IP, UDP/IP, iSCSI, IPv4, IPv6
Features VLAN support, Quality of Service (QoS), Jumbo Frames support, Single Root I/O Virtualization (SR-IOV), NetFlow, Transparent (N_Port ID Virtualization – NPIV) mode support, FCoE support, iSCSI boot, built-in ASIC, Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), secure boot, Data Plane Development Kit (DPDK), virtual machine multiqueues (VMMQ), usNIC, GENEVE support, NetQueue, PTPv2 TC (Transparent Clock) support
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1BR
Expansion / Connectivity
Interfaces 2 x 10Gb Ethernet/25Gb Ethernet/40Gb Ethernet/50Gb Ethernet/100Gb Ethernet – KR
Miscellaneous
Compliant Standards WEEE, WWN
Power
Power Consumption Operational 24.8 Watt
Software / System Requirements
Software Included Cisco Intersight
Dimensions & Weight
Width 5 in
Height 1.5 in
Length 4.3 in
Compatibility Information
Designed For P/N: UCSX-210C-M7-NEW, UCSX-210C-M7-U, UCSX-410C-M7-U, UCSX-9508-D-U
