Network Adapters

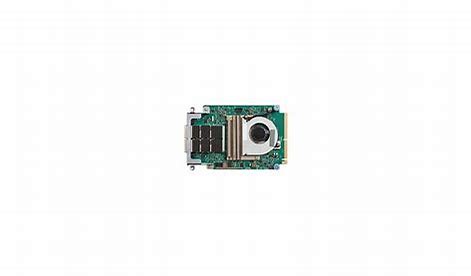

Cisco UCS Virtual Interface Card 15237 – network adapter – PCIe 4.0 x16 – 200 Gigabit Ethernet x 2
The Cisco UCS VIC 15237 is a dual-port quad small-form-factor pluggable (QSFP/QSFP28/QSFP56) mLOM card designed for Cisco UCS C-series M6/M7 rack servers. The card supports 40/100/200 Gbps Ethernet or FCoE. The card can present PCIe standards-compliant interfaces to the host, and these can be dynamically configured as either NICs or HBAs.
AED9,399.00
Cisco UCS Virtual Interface Card 15237 – Network adapter – PCIe 4.0 x16 – 200 Gigabit Ethernet x 2 – for P/N: UCSC-5PK-C245M6, UCSC-C225-M6S-NEW, UCSC-C245-M6SX, UCSC-C245-M6SX-NEW
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in module |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| Networking | |
| Ports | 200 Gigabit Ethernet x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 40 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet |
| Fibre Channel | SCSI-FCP |
| Data Transfer Rate | 200 Gbps |
| Performance | Latency: 1 µs<br>Throughput: 200 Gbps |
| Capacity | IOPS: 900000<br>Jumbo frame size: 9 KB |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI, IPv4, IPv6 |
| Features | VLAN support, QoS, SR-IOV, NetFlow, FCoE support, iSCSI boot, built-in ASIC, Cisco SingleConnect technology, PFC, FDMI, VXLAN, NVGRE, RoCE v2, N-Port ID virtualization, secure boot, DPDK, Q-in-Q tunneling, usNIC, GENEVE support, NetQueue, VMQueue, receive flow steering |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1BR, IEEE 802.3by, IEEE 802.3cd |
| Expansion / Connectivity | Interfaces: 2 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet – SFP+/SFP28/SFP56 |
| Miscellaneous | Compliant Standards: WEEE, WWN |
| Power | Power Consumption Operational: 34.4 Watt |
| Software / System Requirements | Software Included: Cisco Intersight<br>OS Required: SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux, Ubuntu, Citrix XenServer, VMware vSphere |
| Dimensions & Weight | Width: 0.7 in<br>Depth: 3.9 in<br>Height: 6.3 in |
| Dimensions & Weight | Width: 0.7 in<br>Depth: 3.9 in<br>Height: 6.3 in |
| Compatibility Information | Designed For P/N: UCSC-5PK-C245M6, UCSC-C220-M6N, UCSC-C220-M6S, UCSC-C220-M6S-BR, UCSC-C225-M6N, UCSC-C225-M6S, UCSC-C225-M6S-NEW, UCSC-C240-M6L, UCSC-C240-M6L-BR, UCSC-C240-M6N, UCSC-C240-M6S, UCSC-C240-M6SN, UCSC-C240-M6SX, UCSC-C240-M6SX-BR, UCSC-C245-M6SX, UCSC-C245-M6SX-NEW |
