Cisco UCS Virtual Interface Card 15238 – network adapter – PCIe 4.0 x16 – 200 Gigabit Ethernet x 2

Add to Wishlist

Cisco UCS Virtual Interface Card 15238 – Network adapter – PCIe 4.0 x16 – 200 Gigabit Ethernet x 2

AED7,699.00

Add to Wishlist

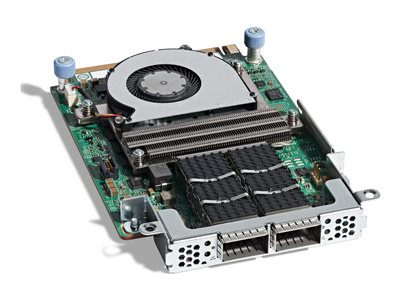

The Cisco UCS VIC 15238 is a dual-port quad small-form-factor pluggable (QSFP/QSFP28/QSFP56) mLOM card designed for Cisco UCS C-series M6/M7 rack servers. The card supports 40/100/200-Gbps Ethernet or FCoE. The card can present PCIe standards-compliant interfaces to the host, and these can be dynamically configured as either NICs or HBAs.

SKU: HCI-M-V5D200G 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in module
Interface (Bus) Type PCI Express 4.0 x16
Networking
Ports 200 Gigabit Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 200 Gigabit Ethernet
Fibre Channel SCSI-FCP
Data Transfer Rate 200 Gbps
Performance Latency: 1 µs, Throughput: 200 Gbps
Capacity IOPS: 900000, Jumbo frame size: 9 KB
Network / Transport Protocol TCP/IP, UDP/IP, iSCSI, IPv4, IPv6
Features VLAN support, Quality of Service (QoS), Single Root I/O Virtualization (SR-IOV), NetFlow, FCoE support, iSCSI boot, built-in ASIC, Cisco SingleConnect technology, Priority-Based Flow Control (PFC), Fabric-Device Management Interface (FDMI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2, N-Port ID virtualization, Data Plane Development Kit (DPDK), Q-in-Q tunneling, usNIC, GENEVE support, NetQueue, VMQueue, receive flow steering
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1BR, IEEE 802.3by, IEEE 802.3cd
Expansion / Connectivity
Interfaces 2 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet – QSFP/QSFP28/QSFP56
Miscellaneous
Compliant Standards WEEE, WWN
Software / System Requirements
Software Included Cisco Intersight
OS Required SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux, Ubuntu, Citrix XenServer, VMware vSphere
Dimensions & Weight
Width 2.5 in
Height 0.7 in
Length 6.3 in
