Routers

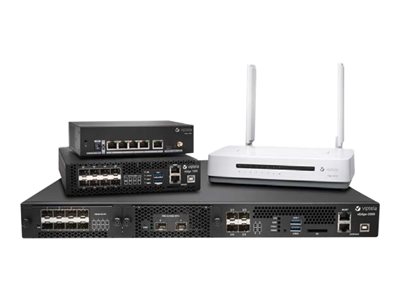

Cisco vEdge 1000 – router – rack-mountable
Tech overview
Cisco vEdge 1000 – Router – GigE – front to back airflow – rack-mountable
AED13,299.00
Cisco’s vEdge routers deliver comprehensive WAN gateway and network services function for both traditional routing and SDWAN deployments. Cisco vEdge routers are hardware appliances that sit at the perimeter of a site, such as remote office, branch office, campus, or a data center.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance | VPN throughput (256-bit AES): 1 Gbps |
| Routing Protocol | OSPF, BGP, IGMPv2, IGMP, static IP routing |
| Remote Management Protocol | SNMP |
| Authentication Method | RADIUS, TACACS+ |
| Features | NAT support, PAT support, VLAN support, Syslog support, MAC address filtering, DHCP server, DHCP relay, DHCP client, policy-based access control, 2 fans, NTP, policy-based routing, DNS client, IPSec support, IRB |
| Compliant Standards | IEEE 802.1Q, FCC Class A certified, FCC Part 15 B, AS/NZS 60950-1, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI Class A, EN 61000-3-3:2013, CAN/CSA-CISPR 22-10, CISPR 22:2008, EN 55024:2010+A1:2015, EN 55032:2012+AC:2013 Class A, ANSI C63.4-2014, ICES-003:2016, CAN/CSA-C22.2 No. 60950-1, EN 61000-3-2:2014 Class A, CB 60950-1, AS/NZS CISPR 32:2015, CISPR 32:2015 |
| RAM | 2 GB DDR3 SDRAM |
| Flash Memory | 8 GB |
| Built-in Devices | SD card reader |
| Expansion / Connectivity |
| Interfaces | LAN: 8 x 1000Base-X – SFP (mini-GBIC) ¦ USB 3.0: 2 x 9 pin USB Type A ¦ Console: 1 x USB – 4 pin USB Type B ¦ Console: 1 x RJ-45 ¦ Management: 1 x 10Base-T/100Base-TX/1000Base-TX – RJ-45 |
| Power |
| Power Device | External power adapter |
| Power Redundancy | Yes |
| Installed Qty | 2 |
| Voltage Required | AC 100 – 240 V (50/60 Hz) |
| Power Consumption Operational | 28 Watt |
| Miscellaneous | Rack Mounting Kit: Included |
| MTBF | 80,000 hours |
| Dimensions & Weight |
| Width | 7.5 in |
| Depth | 10 in |
| Height | 1.7 in |
| Weight | 3.53 lbs |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 85% |
