Switches

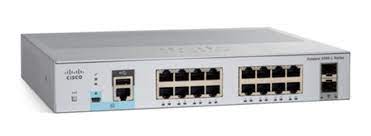

Cisco WS-C2960L-16TS-LL 16 Port Ethernet Switch
Interface Types: Ethernet RJ45, SFP
Electrical Interface: Ethernet Gigabit – 1Gbps
Bays/Ports/Slots: 16
Voltage: 110-240V Multi
AED5,099.00
Cisco WS-C2960L-16TS-LL Catalyst 2960-L Series 16 Ethernet Ports & 2 SFP Managed Switch – Brand New
Cisco WS-C2960L-16TS-LL Catalyst 2960-L Series 16 Ethernet Ports & 2 Small Form‑Factor Pluggable Managed Switch – Brand New
Cisco Catalyst 2960-L Series Switches
Cisco Catalyst® 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations with a range of Cisco IOS® Software features.
Product Highlights
Cisco Catalyst 2960-L switches feature:
- 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding
- 2 or 4 Gigabit Small Form-Factor Pluggable (SFP) uplinks
- Power over Ethernet Plus (PoE+) support with up to 370W of power budget
- Perpetual PoE provides uninterrupted power to connected devices even when the switch is booting
- Fanless operation and operational temperature up to 45°C for deployment outside the wiring closet
- Higher mean time between failure (MTBF) because they have no moving mechanical parts
- Less than 11.5-inch depth fit in use cases with space limitation
- Reduced power consumption and advanced energy management features
- RJ45 and USB console access for simplified operations
- Intuitive web UI for easy deployment and management
- Over-the-air configuration and management via Bluetooth interface
- Cisco IOS® Software features
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement
| Cisco Catalyst 2960-L Series Switches | |
|---|---|
| Model Number | WS-C2960L-16TS-LL |
| Configurations | |
| 10/100/1000 Ethernet Ports | 16 |
| Uplink Interfaces | 2 SFP |
| Available PoE Power | —– |
| Fanless | Yes |
| Dimensions (H x D x W) | 1.73 x 8.45 x 10.56 in. (4.4 x 21.5 x 26.8 cm) |
| Weight | 4.53 lb (2.06 kg) |
| Console Ports | |
| RJ45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
| Memory and Processor | |
| CPU | ARMv7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 18 Gbps |
| Switching bandwidth | 36 Gbps |
| Forwarding rate (64-byte L3 packets) | 26.78 Mpps |
| Unicast MAC addresses | 8K |
| Maximum active VLANs | 64 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 1 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| MTBF in hours (Data) | 2,416,689 |
| MTBF in hours (PoE) | 313,496 |
| Environment | |
| Operating temperature Up to 5,000 ft |
|
| Operating temperature Up to 10,000 ft | 23ºF to 104ºF (–5ºC to 40ºC) |
| Operating altitude | 10,000 ft (3000m) |
| Operating relative humidity | 5% to 90% at 40ºC |
| Storage temperature | –13º to 158ºF (–25º to 70ºC) |
| Storage altitude | 15,000 ft (4500m) |
| Storage relative humidity | 5% to 95% at 65ºC |
| Storage altitude | Note: Minimum ambient temperature for cold start is 0°C (32°F) |
| Electrical | |
| Voltage (autoranging) | Data: 110 to 220V AC in PoE: 110 to 220V AC in |
| Switching bandwidth | Data: 50 to 60 Hz PoE: 50 to 60 Hz |
| Forwarding rate (64‑byte L3 packets) | Data: 0.16A to 0.26A PoE: 0.24A to 0.28A |
| Unicast MAC addresses | Data: 0.05 kVA PoE: 0.19 kVA |
| Safety and Compliance | |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
| EMC: emissions | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A |
| EMC: immunity | EN55024, CISPR24, EN300386, KN24 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | USGv6 and IPv6 Ready Logo |
| Connectors and Interfaces | |
| Ethernet interfaces |
|
| SFP and SFP+ interfaces | For information about supported SFP/SFP+ modules, refer to the Transceiver Compatibility matrix tables at cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html |
| Indicator LEDs |
|
| Console cables |
|
| Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
ROHS Compliant
Weight: 5 lb
