Cisco WS-C2960X-48TD-L Catalyst 2960 X 48 Giga Network Switch
Cisco WS-C2960X-48TD-L Catalyst 2960 X 48 Giga Network Switch

Cisco WS-C2960X-48TD-L Catalyst 2960 X 48 Giga Network Switch

Availability:

10 in stock
Add to Wishlist

AED7,599.00

10 in stock

Add to Wishlist

OverviewĀ (WS-C2960X-48TD-L)

Cisco Catalyst 2960x-48td-l Ethernet Switch – 48 Ports – Manageable – 48 X Rj-45 – 2 X Expansion Slots – 10/100/1000base-t – Desktop, Rack-mountable

Cisco Catalyst 2960X-48TD-L LAN Base stackable Layer 2 switch provides enterprise-class access for campus and branch applications. It is comprised of 48 Ethernet 10/100/1000 ports and 2 x 10G SFP+ uplink interfaces.

Quick Specs

Figure 1 shows the front view of the Cisco 2960X-48TD-L switch.

WS-C2960X-48TD-L

Table 1 shows the Quick Spec of the Cisco 2960X-48TD-L switch.

Product Code WS-C2960X-48TD-L
Enclosure Type Rack-mountable – 1U
Feature Set LAN Base
Uplink Interfaces 2 x 10G SFP+
Ports 48 x Ethernet 10/100/1000 Gigabit ports
Maximum stacking number 8
Stack bandwidth 80G
Forwarding Bandwidth 108Gbps
Switching Bandwidth 216Gbps
RAM 512MB
Flash Memory 128MB
Dimensions 44.5 cm x 27.9 cm x 4.5 cm
Package Weight 9.19 Kg

Product Details

Figure 2 shows the front panel of the Cisco Catalyst 2960X-48TD-L switch.

WS-C2960X-48TD-L Front Panel

Note:

ā‘  Ethernet management port ā‘„ SFP module ports
ā‘” Mode button ā‘¦ 48 x 10/100/1000 ports
ā‘¢ Switch LEDs ā‘§ CONSOLE LED
ā‘£ USB mini-Type B (console) port ā‘Ø MGMT LED
ā‘¤ USB Type A ports ā‘© RJ-45 console port

Ā·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, and STACK LEDs.

Figure 3 shows the back panel of the Cisco Catalyst 2960X-48TD-L switch.

WS-C2960X-48TD-L Back Panel

Note:

ā‘  FlexStack-Plus module slot and cover ā‘¢ RPS Connector
ā‘” Fan Exhaust ā‘£ AC power connector

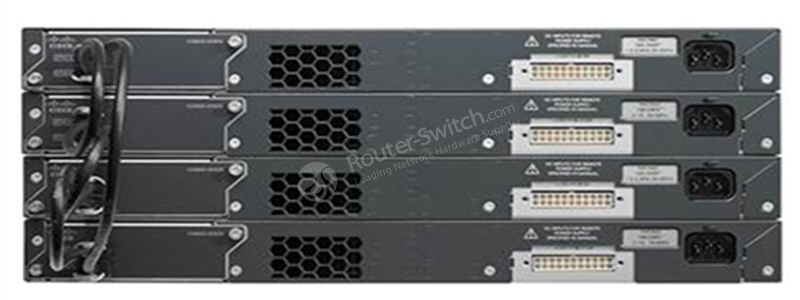

Figure 4 shows the stackable capacity.

This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.

Stackable Switches

The Accessories

Table 2 shows some accessories of the WS-C2960X-48TD-L.

Models Description
C2960X-STACK Catalyst 2960-X FlexStack Plus Stacking Module
CAB-STK-E-0.5M Cisco FlexStack Stacking Cables
GLC-LH-SM GE SFP, LC connector LX/LH transceiver
GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Compare to Similar Items

Table 3 shows the comparison of similar items.

Models WS-C2960X-48TD-L WS-C2960X-48TS-L
Ports 48 x Ethernet 10/100/1000 Gigabit ports 48 x Ethernet 10/100/1000 Gigabit ports
Uplinks 2 x 10G SFP+ 4 x 1G SFP
Feature Set LAN Base LAN Base
FlexStack-Plus Stacking Optional Optional

SpecificationĀ (WS-C2960X-48TD-L)

model info: WS-C2960X-48TD-L Ā
enclosure type Rack-mountable – 1U Ā
Ports 48 x 10/100/1000 + 2 x 10G SFP+ Ā
Network management Interface 10/100 Mbps Ethernet (RJ-45) Ā
Available PoE Power None Ā
Forwarding bandwidth(Gbps) 108Gbps Ā
Maximum stacking number 8 Ā
Stack Bandwidth 80G Ā
Forwarding Performance 130.9Mpps Ā
Switching bandwidth 216Gbps Ā
Maximum active VLANs 1023 Ā
MAC Address Table Size 16K (default) Ā
CPU APM86392 600MHz dual core Ā
RAM 512 MBĀ  Ā
Flash Memory 128 MBĀ  Ā
Status Indicators Per-port status:Ā Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Expansion / Connectivity Ā  Ā
Console ports USB (Type-B), Ethernet (RJ-45) Ā
Stacking cable Optional Ā
Power Redundancy Option (PWR-RPS2300) Ā
Voltage range (Auto) 110V-240V Ā
Power Consumption Operational 0.049KVA Ā
Miscellaneous Ā  Ā
Width 17.5 Inches (44.5 Cm) Ā
Depth 11.0 Inches (27.9 Cm) Ā
Height 1.75 Inches (4.5 Cm) Ā
Weight 9.6 Pounds (4.3 Kg) Ā
Rack Mounting Kit optional Ā
Ā MTBF in hours 445,460 Ā
Compliant Standards ā—Ā IEEE 802.1D Spanning Tree Protocol
ā—Ā IEEE 802.1p CoS Prioritization
ā—Ā IEEE 802.1Q VLAN
ā—Ā IEEE 802.1s
ā—Ā IEEE 802.1w
ā—Ā IEEE 802.1X
ā—Ā IEEE 802.1ab (LLDP)
ā—Ā IEEE 802.3ad
ā—Ā IEEE 802.3af and IEEE 802.3at
ā—Ā IEEE 802.3ah (100BASE-X single/multimode fiber only)
ā—Ā IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports		 ā—Ā IEEE 802.3 10BASE-T
ā—Ā IEEE 802.3u 100BASE-TX
ā—Ā IEEE 802.3ab 1000BASE-T
ā—Ā IEEE 802.3z 1000BASE-X
ā—Ā RMON I and II standards
ā—Ā SNMP v1, v2c, and v3
ā—Ā IEEE 802.3az
ā—Ā IEEE 802.3ae 10Gigabit Ethernet
ā—Ā IEEE 802.1ax
System software / license Ā  Ā
System software IOS LAN BASE Ā
license NERGY-MGT-100-K9, EW-DO-100-DE Ā
features ā—RPS SupportĀ ā—Ā Jumbo FramesĀ ā—Ā VLANSĀ ā—Voice VlanĀ ā—VTPv2ā—CDPv2Ā ā—LLDPĀ ā—Ā 802.3ad LACPĀ ā—Ā PVST/PVST+Ā ā—Ā 802.1W/802.1Sā—Port Fast/Uplink FastĀ ā—Ā port CoS Trust and OverrideĀ ā—Ā Trusted BoundaryĀ ā—Ā ACL ClassificationĀ ā—ingress PolicingĀ ā—Ā Auto QoSĀ ā—802.1p queuesĀ ā—Ā SchedulingĀ ā—Ā Priority QueuingĀ ā—Ā Configure CoS Priority QueuesĀ ā—Configure CoS Priority QueuesĀ ā—Ā Configure Queue WeightsĀ ā—Ā Configure Buffers and ThresholdsĀ ā—Class & Policy MapsĀ ā—Ā Modify CoS and DSCP MappingĀ ā—Ā Weighted Tail DropĀ ā—Ā DSCP transparencyĀ  Ā
Network security ā—Ā SSH, SSL and SCPĀ ā—Ā RADIUS and TACACS+Ā ā—Ā SNMPv3 cryptoĀ ā—802.1xĀ ā—Ā 802.1x Accounting / MIBĀ ā—Ā 802.1x w/ port securityĀ ā—Ā 802.1x w/Voice VLANĀ ā—Ā 802.1x Guest VLANĀ ā—Ā 802.1x VLAN assignmentā—802.1x Auth-Fail VLANĀ ā—Ā 802.1x AAA Fail OpenĀ ā—802.1x WOLĀ ā—802.1x MAC-Auth BypassĀ ā—802.1x Web-AuthĀ ā—802.1x Multi-Domain AuthĀ ā—Ā IPv6 First-Hop SecurityĀ ā—Layer 2-4 ACLs (Port, Time, and DSCP-based)Ā ā—DHCP SnoopingĀ ā—DHCP Option 82Ā ā—DHCP Serverā—IPv6 HostĀ ā—IPv6 MLD SnoopingĀ ā—MVRĀ ā—Ā BPDU/Root GuardĀ ā—Ā Port SecurityĀ ā—Ā Private VALN EdgeĀ ā—Ā Storm ControlĀ ā—Ā Block unknown unicast and multicastĀ ā—Ā IGMP SnoopingĀ ā—Ā IGMP Filter/Throttle Ā
Management and Troubleshooting ā—Auto-MDOX ā—TDR ā— UDLD ā— IP SLA Responder ā— layer 2 / IP Traceroute ā— SPAN ā— RSPAN ā— Express Setup ā— Device Manager ā— Cisco Network Assistant ā— Smartports + Advisor ā— Troubleshooting Advisor ā— Drag-and-drop Cisco IOS Upgrade ā— IP Address DHCP ā— Autoinstall with saved configuration ā— Configuration Replace ā— DHCP Auto Image Upgrade ā— DHCP Port Based Allocation ā— Error Disable MIB Ā
Environmental Ranges Ā  Ā
Ā  Fahrenheit Centigrade
Operating temperature up to 5000 ft (1500 m) 23ĀŗF to 113Āŗ -5ĀŗC to 45ĀŗC
Operating temperature up to 10,000 ft (3000 m) 23ĀŗF to 104ĀŗF -5ĀŗC to 40ĀŗC
Short-term exception at sea level* 23ĀŗF to 131ĀŗF -5ĀŗC to 55ĀŗC
Short-term exception up to 5000 feet (1500 m)* 23ĀŗF to 122ĀŗF -5ĀŗC to 50ĀŗC
Short-term exception up to 10,000 feet (3000 m)* 23ĀŗF to 113ĀŗF -5ĀŗC to 45ĀŗC
Short-term exception up to 13,000 feet (4000 m)* 23Āŗ to 104ĀŗF -5ĀŗC to 40ĀŗC
Storage temperature up to 15,000 feet (4573 m) -13Āŗ to 158ĀŗF -25Āŗ to 70ĀŗC
Ā  Feet Meters
Operating altitude Up to 10,000 Up to 3000
Storage altitude Up to 13,000 Up to 4000
Operating relative humidity 10% to 95% noncondensing Ā
Storage relative humidity 10% to 95% noncondensing
