The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access⢠Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.
ethernet

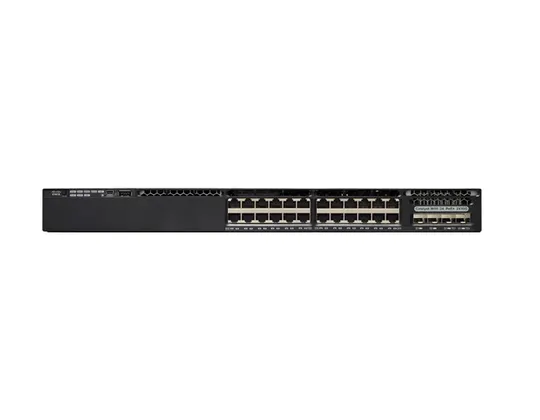

Cisco WS-C3650-24PDM-L network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
4 GB DRAM, 4096 VLAN, 24 10/100/1000 Ethernet PoE+, 2x10G Uplink, 640WAC, 1 RU, LAN Base set
AED39,499.00
Switch type | Managed |
Switch layer | L2 |
Quality of Service (QoS) support | Y |
Web-based management | Y |
Traffic classification | Y |
Traffic shaping | Y |
ARP inspection | Y |
MIB support | Y |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Installed SFP+ modules quantity | 2 |
Fiber optic connector | SFP+ |
Power connector | DC-in jack |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x, IEEE 802.3z |
10G support | Y |
Cable types supported | Cat5, Cat5e, Cat6, Cat6a |
Full duplex | Y |
IP routing | Y |
Flow control support | Y |
Link aggregation | Y |
Rate limiting | Y |
Auto MDI/MDI-X | Y |
Spanning tree protocol | Y |
VLAN support | Y |
Virtual LAN features | Stacked VLAN, Private VLAN, Port-based VLAN |
MAC address table | 32000 entries |
Switching capacity | 256 Gbit/s |
Jumbo frames support | Y |
Jumbo frames | 9198 |
DHCP features | DHCP server, DHCP client |
Access Control List (ACL) | Y |
IGMP snooping | Y |
MAC address filtering | Y |
SSH/SSL support | Y |
BPDU filtering/protection | Y |
Multicast support | Y |
Multicast MAC address table | 24000 entries |
Rack mounting | Y |
Stackable | Y |
Form factor | 1U |
Product colour | Black |
LED indicators | Y |
Wall mountable | Y |
Flash memory | 4096 MB |
Mean time between failures (MTBF) | 304860 h |
Harmonized System (HS) code | 85176990 |
Power supply included | Y |
AC input voltage | 100 – 240 V |
AC input frequency | 50 – 60 Hz |
Input current | 5 – 12 A |
Power consumption (max) | 975 W |
Power over Ethernet (PoE) | Y |
Power over Ethernet plus (PoE+) ports quantity | 24 |
Total Power over Ethernet (PoE) budget | 390 W |
Operating temperature (T-T) | -5 – 45 °C |
Storage temperature (T-T) | -40 – 70 °C |
Storage relative humidity (H-H) | 5 – 95% |
Operating altitude | 0 – 3000 m |
Width | 445 mm |
Depth | 296 mm |
Height | 44 mm |
Weight | 5.56 kg |
AC adapter included | Y |
