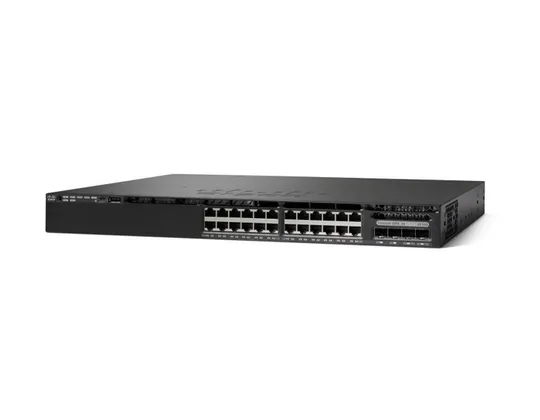

Cisco WS-C3650-8X24UQ-L network switch L2/L3 Gigabit Ethernet (10/100/1000) 1U Black


Standalone with Optional Stacking 24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 4x10G Uplink ports, with 1100WAC power supply, 1 RU, LAN Base feature set

49,199.00 د.إ

Highlights

The CiscoĀ® CatalystĀ® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWiseĀ®-160, and takes advantage of the new Cisco Unified Accessā„¢ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOEĀ®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.

Category: Tag:
Feature Details
Switch layer L2/L3
Quality of Service (QoS) support Y
Traffic shaping Y
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3z
10G support Y
Full duplex Y
Auto MDI/MDI-X Y
MAC address table 32000 entries
Switching capacity 272 Gbit/s
Jumbo frames support Y
Jumbo frames 9198
DHCP features DHCP server
Access Control List (ACL) Y
Multicast support Y
Rack mounting Y
Form factor 1U
Product colour Black
LED indicators Y
Internal memory 4000 MB
Mean time between failures (MTBF) 233780 h
Harmonized System (HS) code 85176990
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power consumption (typical) 1100 W
Operating temperature (T-T) -5 – 40 °C
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 96%
Operating altitude 0 – 5000 m
Non-operating altitude 0 – 5000 m
Width 445 mm
Depth 486 mm
Height 44 mm
Weight 7.58 kg
