Cisco Catalyst WS-C3850-12S-S is the next generation enterprise-level stackable switch that is integrated with 12 SFP ports in IP base feature set.
Quick Specs

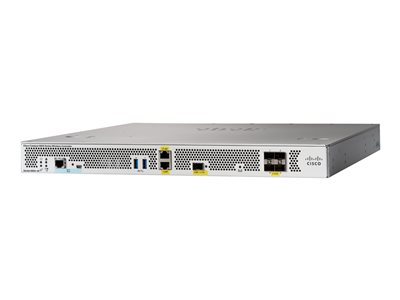

Figure 1 shows the appearance of the Cisco Catalyst WS-C3850-12S-S.
Table 1 shows the Quick Specs.
Product Code |
WS-C3850-12S-S |
Enclosure Type |
1 RU |
Feature Set |
IP base |
Network SFP uplink module selection |
C3850-NM-4-1GC3850-NM-2-10G |
Ports |
12 ports of SFP Ethernet fiber connection with Flexible Netflow feature |
Maximum stacking number |
9 |
Stack bandwidth |
480Gbps |
Forwarding Performance |
68.4Mpps |
Switching Capacity |
68Gbps |
RAM |
4 G |
Flash Memory |
2 G |
Number of AP per switch/stack |
100 |
Number of wireless clients per switch/stack |
2000 |
Dimensions |
44.5 cm x 45.0 cm x 4.45 cm |
Package Weight |
17.49 Kg |
Product Details
Figure 2 shows the front panel of the Cisco 3850 series 12 ports switch.
Noteļ¼
ā |
UID (blue beacon) |
ā¤ |
USB Type A storage port |
ā” |
Mode button |
ā„ |
12 ports of SFP |
ā¢ |
Status LEDs |
ā¦ |
Network SFP uplink module slot |
ā£ |
USB mini-Type B (console) port |
||
Ā·The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) and S-PWR (Stack Power).
Ā·The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.
Figure 3 shows the back panel of the WS-C3850-12S-S switch.
Noteļ¼
ā |
Ground connector |
ā¤ |
StackWise port connectors |
ā” |
CONSOLE (RJ-45 console port) |
ā„ |
StackPower connectors |
ā¢ |
Fan modules |
ā¦ |
Power supply modules |
ā£ |
MGMT port |
||
Figure 4 shows the StackWise-480 and StackPower connectors.
In order to stacking with LAN base feature set, WS-C3850-12S-S needs to configure in LAN base mode from CLI.
The Modules, Licenses and Accessories
Table 2 shows some recommended modules,licenses and accessories of this switch.
Models |
Description |
C3850-NM-4-1G |
Cisco 3850 Series 4 x 1GE Network Module |
C3850-NM-2-10G |
Cisco 3850 Series 2 x 10GE Network Module |
L-C3850-12-S-E= |
C3850-12 IP Base to IP Services Electronic RTU License |
PWR-C1-350WAC |
Cisco 3850 Series Power Supply 350W AC |
PWR-C1-350WAC/2 |
Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply |
STACK-T1-50CM= |
Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch |
STACK-T1-1M= |
Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch |
Compare to Similar Items
Table 3 shows the comparison between WS-C3850-12S-S and WS-C3850-24S-S.
Models |
WS-C3850-12S-S |
WS-C3850-24S-S |
Feature Set |
IP Base |
IP Base |
Ports |
12 ports of SFP Ethernet fiber connection with Flexible Netflow feature |
24 ports of SFP Ethernet fiber connection with Flexible Netflow feature |
| Cisco catalyst 3850-12S-S | ||
| model info: | WS-C3850-12S-S | |
| enclosure type | Rack-mountable – 1U | |
| Ports | 12 x SFP ports | |
| Network management Interface | ā Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ā Management console port: RJ-45-to-DB9 cable for PC connections |
|
| Available PoE Power | None | |
| Switching Capacity | 68Gbps | |
| Maximum stacking number | 9 | |
| Stack Bandwidth | 480Gbps | |
| Forwarding Performance | 68.4Mpps | |
| FNF entries | 48,000 flows | |
| Maximum VLANs IDs | 1,000 | |
| MAC Address Table Size | 32K | |
| CPU | Multicore CPU | |
| RAM | 4 G | |
| Flash Memory | 2 G | |
| Wireless | ||
| Number of AP per switch/stack | 50 | |
| Number of wireless clients per switch/stack | 2000 | |
| Total number of WLANs per switch | 64 | |
| Wireless bandwidth per switch | up to 20Gbps | |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 | |
| Expansion / Connectivity | ||
| Console ports | USB (Type-B), Ethernet (RJ-45) | |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot | |
| Network Modules Selection | ā C3850-NM-4-1G: 4 x 1G uplinks network module āC3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network moduleĀ |
|
| Stacking cable | āSTACK-T1-50CM StackWise stacking cable with a 0.5 m length āSTACK-T1-1M StackWise stacking cable with a 1.0 m length āSTACK-T1-3M StackWise stacking cable with a 3.0 m length |
|
| Stack Power Cable (recommended) | āCAB-SPWR-30CM stack power cable with a 30CM length āCAB-SPWR-150CM stack power cable with a 150CM length |
|
| Power supply | PWR-C1-350WAC | |
| Power Device | Power supply – redundant – plug-in module | |
| Power Redundancy | optional | |
| Voltage range (Auto) | 100V-240V | |
| Power Consumption of standalone(in Watts) | 109.75 (Max) | |
| Miscellaneous | ||
| Width | 17.5 Inches (44.5 Cm) | |
| Depth | 17.7 Inches (45.0 Cm) | |
| Height | 1.75 Inches (4.45 Cm) | |
| Weight | 15.48 Pounds (7.02Kg) | |
| Rack Mounting Kit | optional | |
| Ā MTBF in hours | 315,840 | |
| Compliant Standards | ā IEEE 802.1D Spanning Tree Protoco ā IEEE 802.1p CoS Prioritization ā IEEE 802.1Q VLAN ā IEEE 802.1s ā IEEE 802.1w ā IEEE 802.1X ā IEEE 802.1X-Rev āIEEE 802.11 ā IEEE 802.1ab (LLDP) ā IEEE 802.3ad ā IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports |
ā IEEE 802.3 10BASE-T ā IEEE 802.3u 100BASE-TX ā IEEE 802.3ab 1000BASE-T ā IEEE 802.3z 1000BASE-X ā RMON I and II standards ā SNMP v1, v2c, and v3 |
| System software / license | ||
| System software | IOS IP Base (Upgradable) | |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 | |
| Software license | āC3850-24-S-E: IP Base to IP Services RTU paper license āL-C3850-24-S-E: IP Base to IP Services RTU electronic license |
|
| Access Point Licenses | āL-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) āL-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) āLIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license) āLIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) |
|
| features | āRPS Support āĀ Jumbo Frames ā VLANS āVoice Vlan āVTPv2 āCDPv2 āLLDP ā 802.3ad LACP and PAgP ā PVST/PVST+ ā 802.1W/802.1S āPort Fast/Uplink FastĀ āDynamic Trunking Protocol (DTP) ā port CoS Trust and Override ā Trusted Boundary ā ACL Classification āingress Policing ā Auto QoS ā Per VLAN policies ā 802.1p queues ā Scheduling ā Priority Queuing ā Configure CoS Priority Queues āConfigure CoS Priority Queues ā Configure Queue Weights ā Configure Buffers and Thresholds āClass & Policy Maps ā Modify CoS and DSCP Mapping ā Weighted Tail Drop ā IGMPv1,v2,v3 and MLDv1, v2 ā DHCP server ā DSCP transparency ā HSRP, VRRP ā RIPv1, v2 EIGRP stub, PIM stub, OSPF stub ā IPV6 management | |
| Advanced Network security | ā Port security ā DHCP snooping āDynamic ARP inspection (DAI) ā IP source guard āThe Unicast Reverse Path Forwarding (uRPF) ā Bidirectional data support on a SPAN ā User authentication ā Private VLANĀ āRouter and VLAN ACLsĀ ā complete identity and security ā Multidomain authentication ā MAC address notification ā IGMP filtering ā Cisco security VLAN ACL ā Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) ā Port-based ACLs ā TrustSec SXP ā IEEE 802.1ae ā TACACS+ and RADIUS authentication ā Cisco standard and extended IP security router ACLs āĀ Bridge protocol data unit (BPDU) Guard ā Spanning Tree Root Guard (STRG) ā Wireless end-to-end securityĀ |
|
| Management | āBRIDGE-MIB āCISCO-AUTH-FRAMEWORK-MIB āCISCO-BGP4-MIB, BGP4-MIB āCISCO-BRIDGE-EXT-MIB āCISCO-BULK-FILE-MIB āCISCO-CABLE-DIAG-MIB āCISCO-CALLHOME-MIB āCISCO-CEF-MIB āCISCO-CIRCUIT-INTERFACE-MIB āCISCO-ENTITY-VENDORTYPE-OID-MIB āCISCO-CONTEXT-MAPPING-MIB āCISCO-DEVICE-LOCATION-MIB āCISCO-DHCP-SNOOPING-MIB āCISCO-EIGRP-MIB āCISCO-EMBEDDED-EVENT-MGR-MIB āCISCO-ENTITY-FRU-CONTROL-MIB āCISCO-ENTITY-SENSOR-MIB āENTITY-MIB āCISCO-ERR-DISABLE-MIB āCISCO-CONFIG-COPY-MIB āCISCO-FLOW-MONITOR-MIB āCISCO-FTP-CLIENT-MIB āCISCO-HSRP-EXT-MIB āCISCO-HSRP-MIB āCISCO-IETF-ISIS-MIB āCISCO-IF-EXTENSION-MIB āCISCO-IGMP-FILTER-MIB āCISCO-CONFIG-MAN-MIB āCISCO-IP-CBR-METRICS-MIB āCISCO-IPMROUTE-MIB āCISCO-IP-STAT-MIB āCISCO-IP-URPF-MIB āCISCO-L2L3-INTERFACE-CONFIG-MIB āCISCO-LAG-MIB āCISCO-LICENSE-MGMT-MIB āCISCO-MAC-AUTH-BYPASS-MIB āCISCO-MAC-NOTIFICATION-MIB āCISCO-MDI-METRICS-MIB āCISCO-FLASH-MIB āCISCO-OSPF-MIB āCISCO-OSPF-TRAP-MIB āCISCO-PAE-MIB āCISCO-PAGP-MIB āCISCO-PIM-MIB āCISCO-PING-MIB āCISCO-PORT-QOS-MIB āCISCO-PORT-SECURITY-MIBāCISCO-PORT-STORM-CONTROL-MIB āCISCO-POWER-ETHERNET-EXT-MIB āCISCO-PRIVATE-VLAN-MIB āCISCO-PROCESS-MIB āCISCO-PRODUCTS-MIBāCISCO-RF-MIB āCISCO-RTP-METRICS-MIB āCISCO-RTTMON-MIB āCISCO-SMART-INSTALL-MIB |
āCISCO-SNMP-TARGET-EXT-MIB āCISCO-STACKMAKER-MIB āCISCO-MEMORY-POOL-MIB āCISCO-STP-EXTENSIONS-MIB āCISCO-SYSLOG-MIB āCISCO-TCP-MIB āCISCO-UDLDP-MIB āCISCO-VLAN-IFTABLE-RELATIONSHIP-MIB āCISCO-VLAN-MEMBERSHIP-MIB āCISCO-VTP-MIB āEtherLike-MIB āHC-RMON-MIB āIEEE8021-PAE-MIB āIEEE8023-LAG-MIB āIF-MIB āIGMP-MIB āIGMP-STD-MIB āIP-FORWARD-MIB āIP-MIB āIPMROUTE-STD-MIB āLLDP-EXT-MED-MIB āLLDP-MIB āNOTIFICATION-LOG-MIB āOLD-CISCO-MEMORY-MIB āCISCO-CDP-MIB āPOWER-ETHERNET-MIB āRMON2-MIB āRMON-MIB āSNMP-COMMUNITY-MIB āSNMP-FRAMEWORK-MIB āSNMP-MPD-MIB āSNMP-NOTIFICATION-MIB āSNMP-PROXY-MIB āSNMP-TARGET-MIB āSNMP-USM-MIB āSNMPv2-MIB āSNMP-VIEW-BASED-ACM-MIB āTCP-MIB āUDP-MIB āCISCO-IMAGE-MIB āCISCO-STACKWISE-MIB āAIRESPMACE-WIRELESS-MIB āCISCO-LWAPP-IDS-MIB āCISCO-LWAPP-AP-MIB āCISCO-LWAPP-CCX-RM-MIB āCISCO-LWAPP-CLIENT-ROAMING-MIB āCISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB āCISCO-LWAPP-DOT11-CCX-CLIENT-MIB āCISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB āCISCO-LWAPP-DOT11-CLIENT-MIB āCISCO-LWAPP-DOT11-MIB āCISCO-LWAPP-DOWNLOAD-MIB āCISCO-LWAPP-LINKTEST-MIB āCISCO-LWAPP-MFP-MIB āCISCO-LWAPP-MOBILITY-EXT-MIB āCISCO-LWAPP-QOS-MIB āCISCO-LWAPP-REAP-MIB āCISCO-LWAPP-ROGUE-MIB āCISCO-LWAPP-RRM-MIB āCISCO-LWAPP-SI-MIB āCISCO-LWAPP-TSM-MIB āCISCO-LWAPP-WLAN-MIB āCISCO-LWAPP-WLAN-SECURITY-MIB |
| Technical Support and Services | ā Cisco SMARTnet Service ā Cisco Smart Foundation Service ā Cisco SP Base Service ā Cisco Focused Technical Support Services | |
| Environmental Ranges | ||
| Fahrenheit | Centigrade | |
| With AC power supply Operating environment and altitude |
||
| Operating temperature up to 5000 ft (1500 m) | 23ĀŗF to 113ĀŗF | Ā -5ĀŗC to +45ĀŗC |
| Operating temperature up to 10,000 ft (3000 m) | 23ĀŗF to 104ĀŗF | Ā -5ĀŗC to +40ĀŗC |
| Short-term exception at sealevel with single fan failure | 23ĀŗF to 113ĀŗF | -5ĀŗC to +45ĀŗC |
| Short-term exception up to 5000 feet (1500 m) | 23ĀŗF to 122ĀŗF | -5ĀŗC to 50ĀŗC |
| Short-term exception up to 10,000 feet (3000 m) | 23ĀŗF to 113ĀŗF | -5ĀŗC to 45ĀŗC |
| With DC power supply Operating environment and altitude (NEBS) |
||
| Operating temperature up to 6000 ft (1800 m) | 23ĀŗF to 113ĀŗF | Ā -5ĀŗC to +45ĀŗC |
| Operating temperature up to 10,000 ft (3000 m) | 23ĀŗF to 104ĀŗF | Ā -5ĀŗC to +40ĀŗC |
| Operating temperature up to 13,000 ft (4000m) | 23ĀŗF to 95ĀŗF | Ā -5ĀŗC to 35ĀŗC |
| Short-term exception up to 6,000 feet (1800 m) | 23ĀŗF to 131ĀŗF | Ā -5ĀŗC to +55ĀŗC |
| Short-term exception up to 10,000 feet (3000 m) | 23ĀŗF to 122ĀŗF | Ā -5ĀŗC to +50ĀŗC |
| Short-term exception up to 13,000 feet (4000 m) | 23ĀŗF to 113ĀŗF | Ā -5ĀŗC to +45ĀŗC |
| Short-term exception at sealevel with single fan failure | 23ĀŗF to 113ĀŗF | Ā -5ĀŗC to +45Āŗ |
| Storage environment | Ā -40ĀŗF to 160ĀŗF | Ā -40ĀŗC to 70ĀŗC |
| Feet | Meters | |
| Operating altitude | Up to 13,000 | Up to 4000m |
| Storage altitude | Up to 15,000 | Up to 4573m |
| Operating relative humidity | 10% to 95% noncondensing | |
| Storage relative humidity | 10% to 95% noncondensing |
