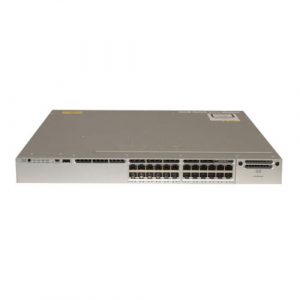

Cisco WS-C3850-24T-E 24-Port Ethernet Switch
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit – 1Gbps
On-Board Cache: 4GB
Bays/Ports/Slots: 24
U Height: 1U
Wattage/VA: 350W
Voltage: 110-240V Multi
AED41,199.00
Cisco WS-C3850-24T-E Catalyst 3850 Series Stackable 24-Port Managed 10/100/1000 Ethernet Switch w/ IP Service feature set – Brand New
Cisco WS-C3850-24T-E Catalyst 3850 Series Stackable 24-Port Managed 10/100/1000 Ethernet Switch w/ IP Service feature set – Brand New
Cisco Catalyst 3850 Series Switches
Get faster access, faster aggregation
Get an access switch that gets you ready for 802.11ac Wave 2 and other new technologies that are here today, or coming at you tomorrow. Stackable Catalyst 3850 Series multigigabit and 10-Gbps network switches give you wired and wireless together so you can scale up and protect your investments.
Cisco Digital Network Architecture
Only Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside.
Converged wired and wireless
The Catalyst 3850 switch gives you smart, simple, and highly secure converged access with an integrated wireless controller. Support up to 100 access points and 2000 wireless clients on each switching entity (switch or stack).
Cisco Catalyst Multigigabit Technology
Support 802.11ac Wave 2 with Catalyst Multigigabit Technology and get speeds beyond 1 Gigabit on existing Category 5e/6 cables. The 3850 switch has multigigabit ports to support 1, 2.5, 5, and 10-Gbps speeds on select models.
PoE, PoE+, and UPOE
Power your solutions with support for PoE and PoE+ to provide up to 30W of power per port, or 60W of power per port with UPOE. Remove the need for additional electrical cabling and circuits to power your access points and IP phones.
Effective security
Get support for Flexible NetFlow, Cisco TrustSec, and MACsec encryption. Use your network as a security sensor and enforcer.
Cisco StackWise-480 technology
Achieve scalability and resiliency with 480 Gbps of stack throughput. Get much higher speeds than previous switching generations.
| Cisco IOS Software Feature Set Differences | |||||
|---|---|---|---|---|---|
| Functions | LAN Base | IP Base | IP Services | ||
| Layer 2+ | Enterprise access Layer 2
Wide range of Layer 2 access features fo renterprise deployments support Cisco StackPower |
Complete Access Layer 2
Supports all Cisco Catalyst 2000 and Cisco Catalyst 3000 Layer 2 features, including hot standby protocols |
Complete Access Layer 2
Supports all Cisco Catalyst 2000 and Cisco Catalyst 3000 Layer 2 features, including hot standby protocols |
||
| Layer 3 | Static IP routing support
Support for SVI |
Enterprise access Layer 3
RIP, EIGRP stub, OSPF for routed access, PBR, IPv4 & IPv6 EIGRP stub routing, WCCP, IPV6 uRPF, IPV6 PBR, VRRPv3, Policy Classification Engine, HSRP v6 |
Complete access Layer 3
OSPF, EIGRP, BGP, IS-IS VRF-lite |
||
| Multicast | IGMP | IPV4 & IPV6 PIM routing | IPV4 & IPV6 PIM routing | ||
| Mobility | Supports Cisco Unified Wireless Networking mobility architecture | Supports Cisco Converged Access mobility architecture with CAPWAP termination at the access | Supports Cisco Converged Access mobility architecture with CAPWAP termination at the access | ||
| Manageability | Basic manageability
Support for a wide range of MIBs, IPSLA Responder, and RSPAN, PnP, Autoconf, Interface Templates, Secure CDP |
Enterprise access Layer 3, Flexible NetFlow for wired and wireless traffic
EEM, GOLD-Lite, and Smart Install Director |
Enterprise access Layer 3, Flexible NetFlow for wired and wireless traffic
EEM, GOLD-Lite, and Smart Install Director |
||
| Security | Enterprise access security
DHCP Snooping, IPSG, DAI, PACLs, Cisco Identity 4.0, NAC and 802.1x features |
Complete access security
Router and VLAN ACLs, private VLANs, complete identity and security; Cisco TrustSec® SXP and IEEE 802.1AE capable in hardware, Device Sensor |
Complete access security
Router and VLAN ACLs, private VLANs, complete identity and security; Cisco TrustSec® SXP and IEEE 802.1AE capable in hardware, Device Sensor |
||
| QoS | Enterprise access security
Ingress policing, Trust Boundary, AutoQoS, and DSCP mapping |
Complete access QoS
Support for all Cisco Catalyst 2000 and Cisco Catalyst 3000 QoS features, including per-VLAN policies |
Complete access QoS
Support for all Cisco Catalyst 2000 and Cisco Catalyst 3000 QoS features, including per-VLAN policies |
||
| Interoperability | Prime 2.1 | Identity Services Engine (ISE 1.2/1.3), Mobility Services Engine (MSE 8.0), Improved WebUI | Identity Services Engine (ISE 1.2/1.3), Mobility Services Engine (MSE 8.0), Improved WebUI | ||
| Cisco 3850 Series | |
|---|---|
| Model#: | WS-C3850-24T-E |
| TOTAL 10/100/1000 OR SFP OR SFP+ PORTS | 24 |
| DEFAULT AC POWER SUPPLY | 350WAC |
| AVAILABLE PoE POWER | N/A |
| PoE BUDGET WITH 1100W SECONDARY PS | N/A |
| STACKWISE-480 | Yes |
| NETWORK MODULE COMPATIBILITY MATRIX | |
| NETWORK MODULES |
|
| POWER SUPPLY MODELS | |
| DEFAULT POWER SUPPLY | PWR-C1-350WAC |
| AVAILABLE PoE POWER | N/A |
| CISCO CATALYST 3850 SERIES PERFORMANCE SPECIFICATOINS | |
| SWITCHING CAPACITY | 92 Gbps |
| STACKING BANDWIDTH | 480 Gbps |
| TOTAL NUMBER OF MAC ADDRESSES | 32,000 |
| TOTAL NUMBER OF IPv4 ROUTES (ARP PLUS LEARNED ROUTES | |
| 24,000 | |
| FNF ENTRIES | 24,000 flows |
| DRAM | 4 GB |
| FLASH | 2 GB |
| VLAN IDs | 4,000 |
| TOTAL SWITCHED VIRTUAL INTERFACES (SVIs) | 4,000 |
| JUMBO FRAME | 9198 bytes |
| TOTAL ROUTED PORTS PER 3850 STACK | 208 |
| WIRELESS | |
| NUMBER OF ACCESS POINTS PER SWITCH/STACK | 100 |
| NUMBER OF WIRELESS CLIENTS PER SWITCH/STACK | 2000 |
| TOTAL NUMBER OF WLANs PER SWITCH | 64 |
| WIRELESS BANDWIDTH PER SWITCH | Up to 20 Gbps |
| SUPPORTED AIRONET ACCESS POINTS |
|
| FORWARDING RATE | 68.4 Mpps |
| DIMENSIONS, WEIGHT, ACOUSTICS, MTBF | |
| DIMENSIONS (H X W X D) | Inces:
Centimeters:
|
| WEIGHT | Pounds:
Kilograms:
|
| MTBF HOURS | 303,230 |
| FORWARDING RATE | 68.4 Mpps |
| ENVIRONMENTAL RANGES | |
| WITH AC POWER SUPPLY
OPERATING ENVIRONMENT AND ALTITUDE |
Normal Operating Temperature1 and Altitudes:
Short-term2 Exceptional Conditions:
1 Minimum Ambient Temperature for Cold Start is 32°F (0°C) 2 Not More than Following in One-Year Period: 96 consecutive hours, or 360 hours total, or 15 occurrences. |
| WITH DC POWER SUPPLY
OPERATING ENVIRONMENT AND ALTITUDE (NEBS) |
Normal operating temperature and altitudes:
Short-Term1 exceptional conditions:
1 Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences. |
| RELATIVE HUMIDITY | Switch – 24 Ports – L3 – Managed – Stackable |
| ACOUSTIC NOISE
MEASURED PER ISO 7779 AND DECLARED PER ISO 9296 |
With AC or DC power supply (with 24 PoE+ ports loaded):
Typical: Noise emission for a typical configuration Maximum: Statistical maximum to account for variation in productionWith Switch – 24 Ports – L3 – Managed – Stackable |
| STORAGE ENVIRONMENT | Temperature:
Altitude:
|
| VIBRATION | Operating:
Nonoperating:
|
| SHOCK | Operating:
Nonoperating:
|
| CONNECTORS | |
| CONNECTORS AND CABLING | RJ-45 connectors, 4-pair Cat-5E UTP cabling |
| POWER CONNECTORS |
|
| MANAGEMENT AND STANDARDS SUPPORT FOR THE CISCO CATALYST 3850 SERIES | |
| MANAGEMENT |
|
| STANDARDS |
|
| POWER CONSUMPTIONS (IN WATTS) OF STANDALONE CISCO CATALYST 3850 SERIES | |
| UPLINK MODULE | C3850-NM-4-1G |
| POWER CONSUMPTION (W)(NO MORE THAN) | 0% Traffic:
10% Traffic:
100% Traffic:
Weighted Average:
|
| POWER CONSUMPTIONS (IN WATTS) OF STANDALONE CISCO CATALYST 3850 SERIES | |
| SAFETY CERTIFCATION |
|
| ELECTROMAGNETIC EMISSIONS CERTIFICATIONS |
|
| ENVIRONMENTAL | Reduction of Hazardous Substances (ROHS) 5 |
| NOISE SPECIFICATIONS | Office Product Spec:
|
| TELCO | CLEI code |
| TECHNICAL SERVICES AVAILABLE FOR CISCO CATALYST 3850 SERIES SWITCHES | |
| CISCO SMART NET TOTAL CARE SERVICE |
|
| CISCO SMART FOUNDATION SERVICE |
|
| CISCO SP BASE SERVICE |
|
| CISCO FOCUSED TECHNICAL SUPPORT SERVICES | Three levels of premium, high-touch services are available:
Valid Cisco Smart Net Total Care or SP Base contracts on all network equipment are required |
Weight: 27 lb
