CISCO7604 Cisco 7604 Router

Add to Wishlist
Model: CISCO7604 Cisco 7604 Router
Detail:
Cisco 7604 Chassis

AED15,099.00

Add to Wishlist

The CiscoĀ®Ā 7604 RouterĀ CISCO7604Ā is a compact, high-performance router designed in a 4-slot form factor for deployment at the network edge, where robust performance and IP/Multiprotocol Label Switching (MPLS) services are necessary to meet the requirements of both enterprises and service providers. It enables Carrier Ethernet service providers to deploy an advanced network infrastructure that supports a range of IP video and triple-play (voice, video, and data) system applications in both the residential and business services markets. The Cisco 7604 also delivers WAN and metropolitan-area network (MAN) networking solutions at the enterprise edge.

Quick Spec

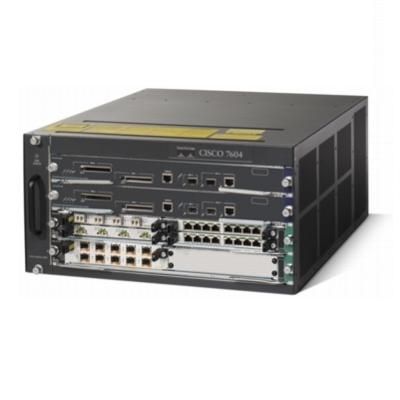

Figure 1 shows the appearance ofĀ CISCO7604.

CISCO7604

Table 1 shows the quick spec.

Product Number CISCO7604
Description Cisco 7604 Chassis
Chassis 5RU (8.75-in.) chassis
ChassisĀ Slots 4-slot chassis
Dimensions (H x W x D) 8.75 x 17.5 x 21.75 in
weight 40 lb

Compare to Similar Items

TableĀ 2Ā shows the comparison betweenĀ CISCO7604Ā and CISCO7609=.

Product Number CISCO7604 CISCO7609=
Description Cisco 7604 Chassis Cisco 7609 Chassis Spare
Dimensions (H x W x D) 8.75 x 17.5 x 21.75 in 36.75 x 17.2 x 20.7 in
Weight 40 lb 121 lb
Category:

CISCO7604Ā Specification
Product Number CISCO7604
Description Cisco 7604 Chassis
Chassis 5RU (8.75-in.) chassis
ChassisĀ Slots 4-slot chassis
Dimensions (H x W x D) 8.75 x 17.5 x 21.75 in
weight 40 lb
Power requirements 110 to 240 VAC, ā€“48 to ā€“60 VDC
Environmental conditions Operating temperature: 32 to 104Ā°F (0 to 40Ā°C)

Storage temperature: ā€“4 to 149Ā°F (ā€“20 to 65Ā°C)

Relative humidity, operating: 10 to 85% noncondensing

Relative humidity, storage: 5 to 95% noncondensing

Operating altitude: ā€“500 to 6500 ft
Regulatory compliance EMC

ā—Ā Ā FCC Part 15 (CFR 47) Class A

ā—Ā Ā ICES-003 Class A

ā—Ā Ā EN55022 Class A

ā—Ā Ā CISPR22 Class A

ā—Ā Ā AS/NZS 3548 Class A

ā—Ā Ā VCCI Class A

ā—Ā Ā EN55024

ā—Ā Ā ETS300 386

ā—Ā Ā EN50082-1

ā—Ā Ā EN61000-3-2

ā—Ā Ā EN61000-3-3

Regulatory Compliance

ā—Ā Ā UL 60950

ā—Ā Ā IEC 60825-1, -2

ā—Ā Ā IEC 60950

ā—Ā Ā EN 60950, EN 60825-1, -2

ā—Ā Ā CAN/CSA-C22.2 No. 60950-00

ā—Ā Ā AS/NZS 3260-1993

ā—Ā Ā 21CFR1040
Safety and environmental standards compliance ā—Ā Ā GR-63-Core NEBS Level 3 (post-FCS)

ā—Ā Ā GR-1089-Core NEBS Level 3 (post-FCS)

ā—Ā Ā ETSI 300 019 Storage Class 1.1

ā—Ā Ā ETSI 300 019 Transportation Class 2.3

ā—Ā Ā ETSI 300 019 Stationary Use Class 3.1
Minimum software release Cisco IOSĀ®Ā Software Release 12.2.18SXE
